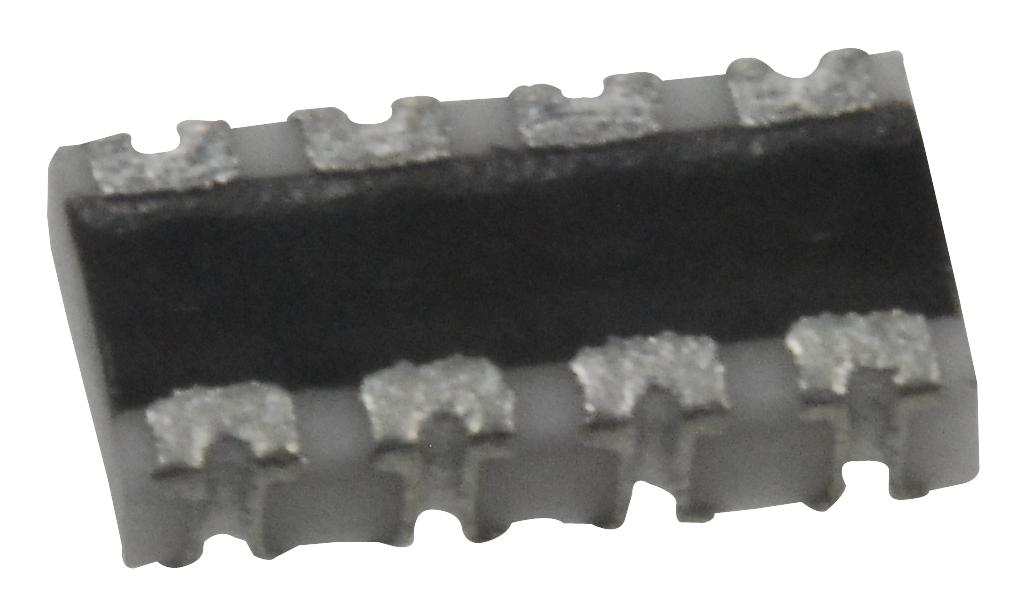

Panasonic EXB38V271JV Resistor Array
The Panasonic Chip Resistor Array EXB38V271JV features high-density construction with 4 resistors in a 3.2 mm x 1.6 mm size, offering improved placement efficiency. RoHS compliant and qualified to AEC-Q200, it provides reliable performance suitable for compact electronic circuits. Designed for surface-mount technology, it offers excellent thermal stability and resistance accuracy. Ideal for space-critical applications requiring multiple resistors in a single package, ensuring efficient assembly and dependable operation in various electronic devices and manufacturing environments.
Panasonic EXB38V271JV Resistor Array Specifications:
- Dimensions: 3.2 mm x 1.6 mm x 0.50 mm
- Resistor Quantity: 4 resistors per package
- Package Size: 1206 inch size
- Construction: Surface-mount, high-density
- Material: Thick film resistors, RoHS compliant
- Operating Temperature: -55°C to +125°C
- Power Rating: 0.063 W per resistor at 70°C
- Resistance Range: 10Ω to 1MΩ (E24 series)
- Tolerance: ±5%
- Resistance T.C.R.: ±200 ppm/°C
- Qualification: AEC-Q200, RoHS compliant
- Application: Space-efficient resistor arrays for electronic circuits
Buy the Panasonic Series Resistor Array: EXB38V271JV
Order the Panasonic EXB38V271JV resistor array online today and enhance your electronic assembly with high-density, space-saving design, reliable performance, and RoHS compliance. Perfect for applications requiring multiple resistors sharing a single package, it offers consistent resistance values, temperature stability, and easy surface-mount installation. Ensure your electronic projects benefit from quick procurement and trusted quality by purchasing this advanced resistor array online now, optimizing your manufacturing processes and final product reliability.
Buy Panasonic EXB38V271JV resistor array now and experience unmatched reliability and high-density performance for compact electronic designs.
Frequently Asked Questions
Where can I buy Panasonic EXB38V271JV?
You can click on the BUY or RFQ button to purchase EXB38V271JV from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EXB38V271JV?
You can download the EXB38V271JV datasheet or visit the Panasonic website for support.
Who is the manufacturer of EXB38V271JV?
Panasonic
