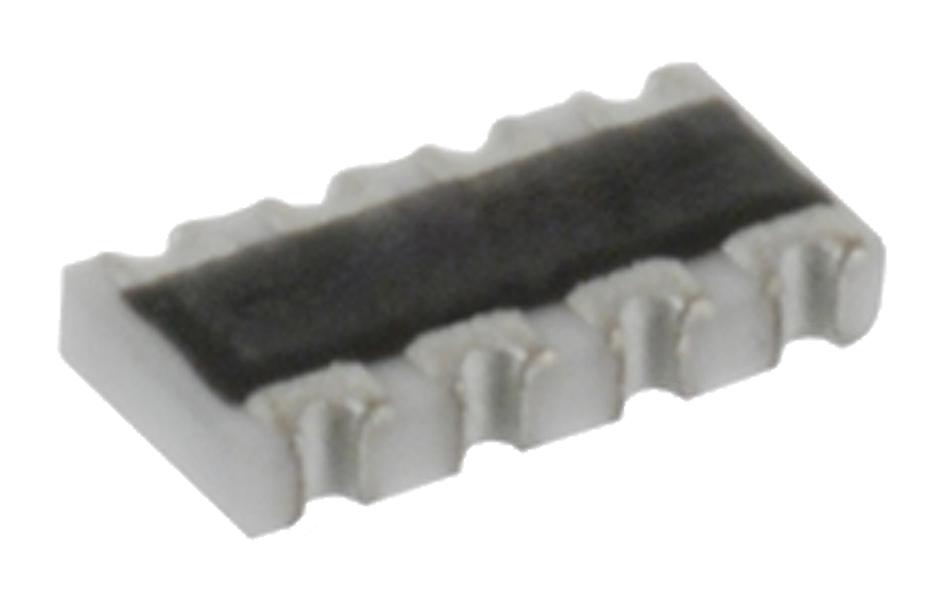

Panasonic EXBU28330JX Chip Resistor Array
The Panasonic Anti-Sulfurated Chip Resistor Array offers high resistance to sulfurization, achieved through an Ag-Pd-based inner electrode, ensuring durability in harsh environments. Compact and high-density, these arrays significantly improve placement efficiency, providing two, four, or eight resistors in various sizes from 0.8 mm x 0.6 mm to 3.8 mm x 1.6 mm. Compliant with IEC 60115-9, JIS C 5201-9, and EIAJ RC-2129 standards, and RoHS and AEC-Q200 certified, they are suitable for reliable electronic applications requiring anti-sulfur properties and high performance.
Panasonic EXBU28330JX Chip Resistor Array Specifications:
- Resistance Range: 10Ω to 1MΩ (E24 Series)
- Resistance Tolerance: ±5%
- Construction: Thick film resistive element with Ag-Pd inner electrode
- Size Options: EXBU14 (0.8x0.6mm), EXBU18 (1.4x0.6mm), EXBU24 (1.0x1.0mm), EXBU28 (2.0x1.0mm), EXBU2H (3.8x1.6mm), EXBU34 (1.6x1.6mm), EXBU38 (3.2x1.6mm)
- Package Types: Taping, Punched Carrier, Land Pattern
- Max Voltage: Varies by size, typically around 25V to 100V
- Operating Temperature Range: -55°C to +125°C
- Features: High sulfur resistance, RoHS compliant, AEC-Q200 compliant (EXBU2, EXBU3)
- Standards: IEC 60115-9, JIS C 5201-9, EIAJ RC-2129
- Environmental Resistance: Soldering heat, temperature cycling, humidity endurance
- Design and reliability confirmed through various testing for industrial applications
Buy the Panasonic EXBU28330JX – Reliable Anti-Sulfur Chip Resistor Array for Industrial Applications
Explore and purchase the Panasonic EXBU28330JX online today to ensure your electronic devices benefit from high sulfur resistance, compact design, and superior placement efficiency. These resistor arrays are perfect for industrial applications demanding durability and compliance with global standards like RoHS and AEC-Q200. Designed for reliability under extreme conditions, they provide precise resistance values in a compact package, simplifying manufacturing and improving performance reliability. Order now to enhance your electronic assembly with proven quality and technical excellence.
Buy Panasonic EXBU28330JX now and experience unmatched reliability and high sulfur resistance for demanding electronic environments.
Frequently Asked Questions
Where can I buy Panasonic EXBU28330JX?
You can click on the BUY or RFQ button to purchase EXBU28330JX from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EXBU28330JX?
You can download the EXBU28330JX datasheet or visit the Panasonic website for support.
Who is the manufacturer of EXBU28330JX?
Panasonic
