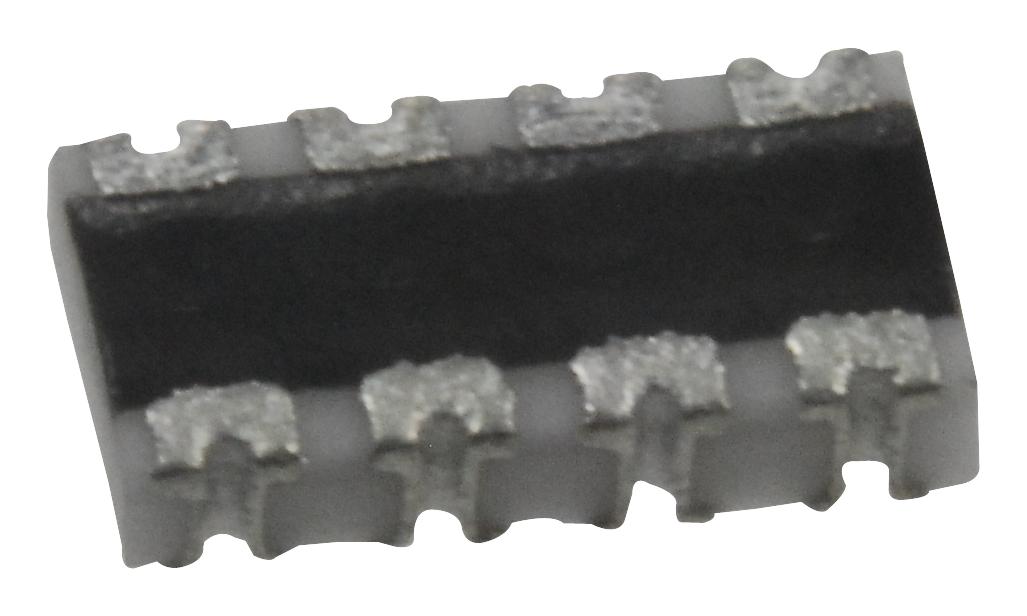

Panasonic EXBV8V153JV Resistor Array
The Panasonic Chip Resistor Array EXBV8V153JV is a high-density, surface-mount resistor array designed for compact electronic circuits. Featuring 8 resistors in a 0603 inch size, it offers excellent placement efficiency, making it suitable for precision applications. This array operates within a resistance range of 10.0 to 1 MΩ, with a ±5% tolerance. Its construction includes a ceramic substrate with protective coating, and it meets industry standards such as IEC 60115-9 and JIS C 5201-9. Ideal for automated assembly, the EXBV8V153JV is RoHS compliant and qualified under AEC-Q200.
Panasonic EXBV8V153JV Resistor Array Specifications:
- Resistance Range: 10.0 to 1 MΩ
- Tolerance: ±5%
- Number of Resistors: 8
- Dimensions: 1.60 mm x 0.60 mm
- Resistive Element Power Rating: 0.031 W per element at 70°C
- Maximum Overload Voltage: 50 V
- Rated Continuous Working Voltage: 100 V
- Category Temperature Range: -65°C to +125°C
- C.R. (Temperature Coefficient): ±200 ppm/°C
- RoHS Compliant, AEC-Q200 Qualified
Buy the Panasonic EXBV8V153JV – Reliable Resistor Array for Industrial Applications
Purchase the Panasonic resistor array EXBV8V153JV online today to enhance your electronic projects. This 8-resistor surface-mount array offers high placement efficiency, excellent resistance stability, and industry-grade reliability. With a compact 0603 size and resistance range up to 1 MΩ, it is perfect for space-constrained applications. RoHS compliant and qualified under AEC-Q200, this component ensures quality and durability for both industrial and consumer electronics. Order now for fast shipping and support for your manufacturing needs.
Get Panasonic EXBV8V153JV today—built for precision, high-density placement, and long-lasting durability in electronic circuit design.
Frequently Asked Questions
Where can I buy Panasonic EXBV8V153JV?
You can click on the BUY or RFQ button to purchase EXBV8V153JV from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EXBV8V153JV?
You can download the EXBV8V153JV datasheet or visit the Panasonic website for support.
Who is the manufacturer of EXBV8V153JV?
Panasonic
