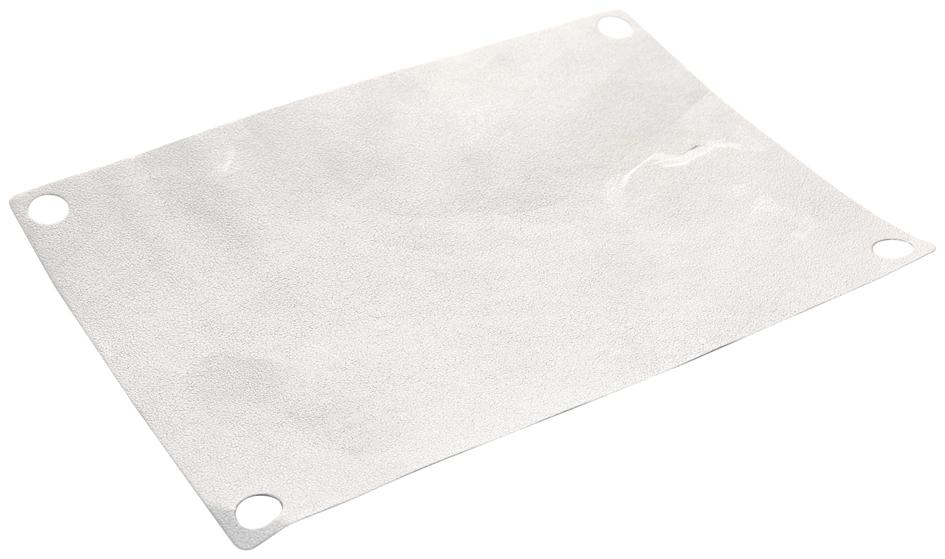

Panasonic EYGS0309ZLMF Graphite Sheet
GraphiteTIM (Compressible Type) is a flexible graphite sheet designed as a thermal interface material for electronic devices. It features high compressibility, low thermal resistance, and excellent heat resistance up to 400°C. Ideal for power modules, inverters, automotive LED systems, and medical equipment, it offers long-term reliability and RoHS compliance. The sheet simplifies assembly with no need for printing processes, reduces overall costs, enhances cooling performance by conforming to uneven surfaces, and ensures excellent thermal conductivity in X-Y and Z directions, making it suitable for high-performance electronic cooling applications.
Panasonic EYGS0309ZLMF Graphite Sheet Specifications:
- Thickness: 200 um, 250 um, 350 um
- Thermal resistance: 0.4 to 0.6 K-cm²/W (at 200 kPa)
- Thermal conductivity: X-Y 200-400 W/m-K, Z 28 W/m-K
- Compressibility: 40% or more at 600 kPa
- Operating temperature range: -55°C to 400°C
- RoHS compliant, Flame resistance UL-94V-0
- Sheet sizes: 90 x 90 mm, 90 x 180 mm, 180 x 180 mm
- Physical properties: flexible graphite sheet with high conformability, no phase change issues
- Application: heat transfer for power modules, automobile, medical, and communication equipment
Buy the Panasonic Series GraphiteTIM: EYGS0309ZLMF
Discover Panasonic graphite sheets designed for optimal thermal management in electronic devices. These highly flexible, compressible sheets offer low thermal resistance and excellent heat transfer capabilities across various applications, including power modules, automotive LED systems, inverters, and medical equipment. Easy to install without printing processes, they improve reliability and reduce costs. With a temperature range from -55°C to 400°C, RoHS compliance, and various size options, Panasonic GraphiteTIM sheets are the ideal solution for efficient cooling in high-performance electronic systems.
Get Panasonic GraphiteTIM sheet today—built for precision thermal management and long-lasting durability.
Frequently Asked Questions
Where can I buy Panasonic EYGS0309ZLMF?
You can click on the BUY or RFQ button to purchase EYGS0309ZLMF from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EYGS0309ZLMF?
You can download the EYGS0309ZLMF datasheet or visit the Panasonic website for support.
Who is the manufacturer of EYGS0309ZLMF?
Panasonic
