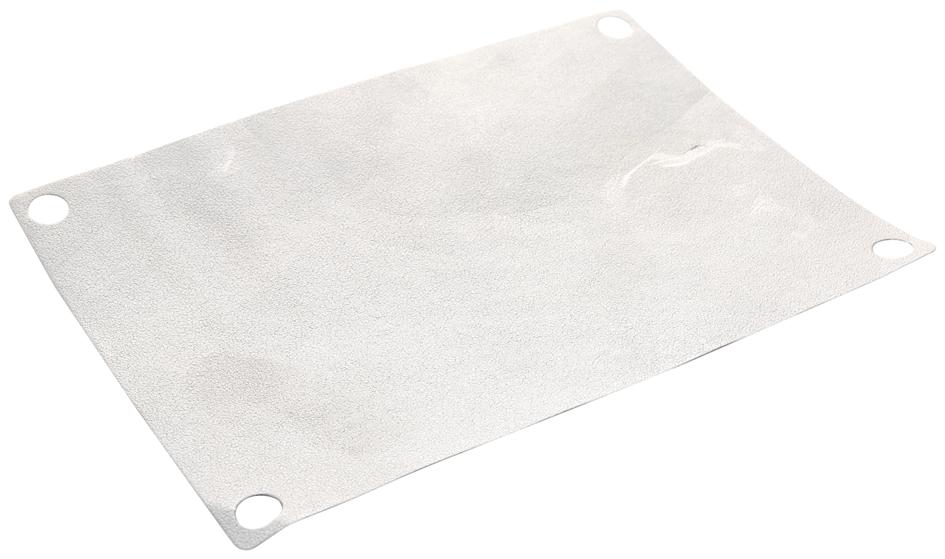

Panasonic EYGS1116ZLMA GraphiteSheet
Graphite thermal interface material sheet designed for efficient heat transfer and long-term reliability in electronic applications. Features high compressibility of over 40%, excellent thermal conductivity ranging from 200 to 400 W/m-K in the X-Y plane, and 28 W/m-K in the Z direction. It operates within a temperature range of -55°C to 400°C, is RoHS compliant, and reduces thermal resistance effectively. Ideal for cooling high-power modules like IGBT, automotive LED, inverters, and server equipment, offering cost savings and process simplification compared to grease-based solutions.
Panasonic EYGS1116ZLMA GraphiteSheet Specifications:
- Dimensions: 90mm x 90mm, 90mm x 180mm, 180mm x 180mm
- Thickness: 200 μm, 250 μm, 350 μm
- Thermal resistance: 0.4 to 0.6 K·cm²/W at 200 kPa
- Thermal conductivity: 200-400 W/m-K in X-Y plane, 28 W/m-K in Z direction
- Compressibility: 40% or more at 600 kPa
- Operating temperature: -55°C to 400°C
- Flame resistance: UL-94V-0 equivalent
- Material: Graphite sheet with high compressibility and thermal stability
- RoHS compliant
Buy the Panasonic Series GraphiteTIM: EYGS1116ZLMA
Secure your Panasonic Series GraphiteTIM EYGS1116ZLMA now online and optimize your thermal management for high-power electronic modules. This graphite sheet offers excellent compressibility, high thermal conductivity in the X-Y plane, and durability up to 400°C. Its low thermal resistance ensures efficient heat dissipation, reducing component temperature and extending device lifespan. Perfect for automotive, power conversion, and server applications, the sheet simplifies assembly processes, eliminates the need for grease, and provides long-term stability while complying with RoHS standards. Invest today for improved device reliability and performance.
Order your Panasonic Series GraphiteTIM EYGS1116ZLMA today and enhance your electronic cooling solutions with reliable, cost-effective thermal management.
Frequently Asked Questions
Where can I buy Panasonic EYGS1116ZLMA?
You can click on the BUY or RFQ button to purchase EYGS1116ZLMA from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EYGS1116ZLMA?
You can download the EYGS1116ZLMA datasheet or visit the Panasonic website for support.
Who is the manufacturer of EYGS1116ZLMA?
Panasonic
