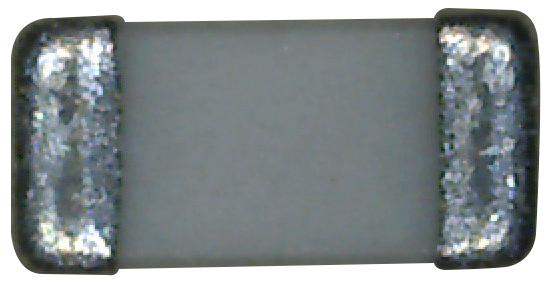

Panasonic EZAEG3W11AV ESD Suppressor
The high withstanding ESD suppressor is designed to provide excellent ESD protection, conforming to automotive standards (ISO10605, air discharge 25 kV). It features low capacitance of 0.10 pF in a compact 0603 size, with a rated voltage of DC 50 V, reducing communication errors. Qualified under AEC-Q200 and RoHS compliant, it is suitable for high-speed automotive data lines such as CAN, Ethernet, USB, LVDS, as well as automotive antennas and amusement equipment. Its rugged construction ensures reliable performance in demanding environments, making it ideal for modern electronic systems requiring robust ESD suppression.
Panasonic EZAEG3W11AV ESD Suppressor Specifications:
- Size: 0603 (1608) mm (inch): 1.60±0.15 / 0.80±0.15
- Capacitance: 0.10 pF (measured at 1 MHz, 25°C)
- Peak Voltage: 1000 V
- Rated Voltage: DC 50 V
- Temperature Range: -55°C to +125°C
- Leakage Current: 10 nA max. at rated voltage
- Humidity Load Life: 85°C, 85% RH, 1000 hours
- Endurance: 125°C, 1000 hours
- Soldering Heat Resistance: 270°C, 10s
- Compliance: RoHS, AEC-Q200
- Application: Automotive data lines, Ethernet, USB, automotive antennas, amusement equipment
- Design conforms to standards: ISO10605 (air discharge 25 kV)
Buy the Panasonic EZAEG3W – Reliable ESD Suppressor for Automotive Data Lines
Protect your electronic systems with the Panasonic EZAEG3W ESD suppressor, designed for automotive and industrial applications. With high ESD withstand capability, low capacitance, and a rated voltage of 50 V, it ensures reliable data transmission in demanding environments. Qualified under AEC-Q200 and RoHS compliant, its compact 0603 size makes installation easy. Whether for automotive Ethernet, USB, or antennas, this suppressor offers robust protection against voltage surges and static discharges. Purchase online today to secure your systems with proven Panasonic quality and quick delivery, ensuring your projects stay on schedule with high-performance ESD suppression.
Order your Panasonic EZAEG3W high withstanding ESD suppressor today and ensure reliable protection for automotive communication systems and high-speed data lines.
Frequently Asked Questions
Where can I buy Panasonic EZAEG3W11AV?
You can click on the BUY or RFQ button to purchase EZAEG3W11AV from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EZAEG3W11AV?
You can download the EZAEG3W11AV datasheet or visit the Panasonic website for support.
Who is the manufacturer of EZAEG3W11AV?
Panasonic
