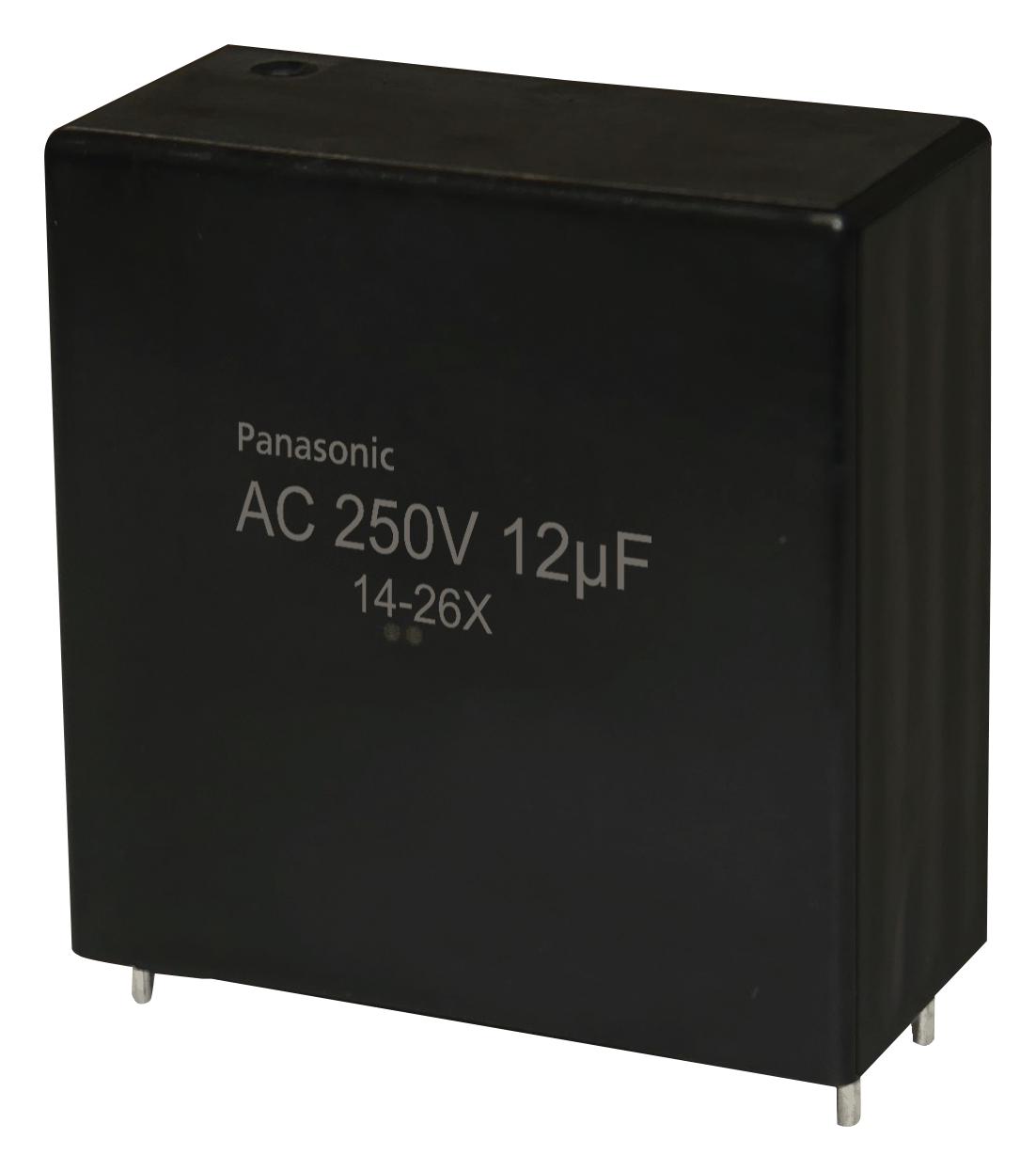

Panasonic EZPQ25126LTA Power Film Capacitor
The metallized polypropylene film capacitor series offers high safety with a built-in self-protecting function, ensuring long product life and high reliability. Features include low loss, low ESR, flame retardant case and sealing resin, and high moisture resistance at 85°C and 85%RH. Suitable for AC filters, solar inverters, UPS, industrial power supplies, and inverter circuits in appliances like air conditioners, these capacitors have film dielectric and segmented electrodes. Approved RoHS compliant, users are advised to verify specifications for critical applications requiring high reliability and safety.
Panasonic EZPQ25126LTA Power Film Capacitor Specifications:
- Rated voltage: 250V, 330V, 380V, 600V (AC)
- Capacitance range: 1 pF to 36 UF depending on model
- Temperature range: -55°C to +105°C; derating over 85°C
- Dimensions vary; typical case material: UL94 V-0 flame-retardant plastic
- Insulation resistance: 1.E+13 to 1.E+14 Ohms at 20°C
- Dissipation factor: Typically below 0.1%
- Terminal types: Tinned wires, 2-pin, 4-pin configurations
- Flame retardant case and sealing resin: UL94 V-0 rated
- Moisture resistance: 85°C, 85%RH for 1000 hours
- RoHS compliant, designed for power electronics and inverter circuits
Buy the Panasonic Series EZPQ Metallized Polypropylene Film Capacitor: EZPQ25126LTA
Purchase Panasonic EZPQ series film capacitors online today for exceptional power filtering, high moisture resistance, and flame-retardant safety features ideal for industrial power supplies, solar inverters, and AC filters. With a robust design, low ESR, and RoHS compliance, these capacitors ensure long-term performance and safety, making them the optimal choice for high-reliability applications. Order now and secure reliable operation for your electronic and power systems with fast delivery and expert support.
Buy Panasonic EZPQ25126LTA now and experience unmatched reliability and enhanced power stability with durable film capacitors designed for industrial uses.
