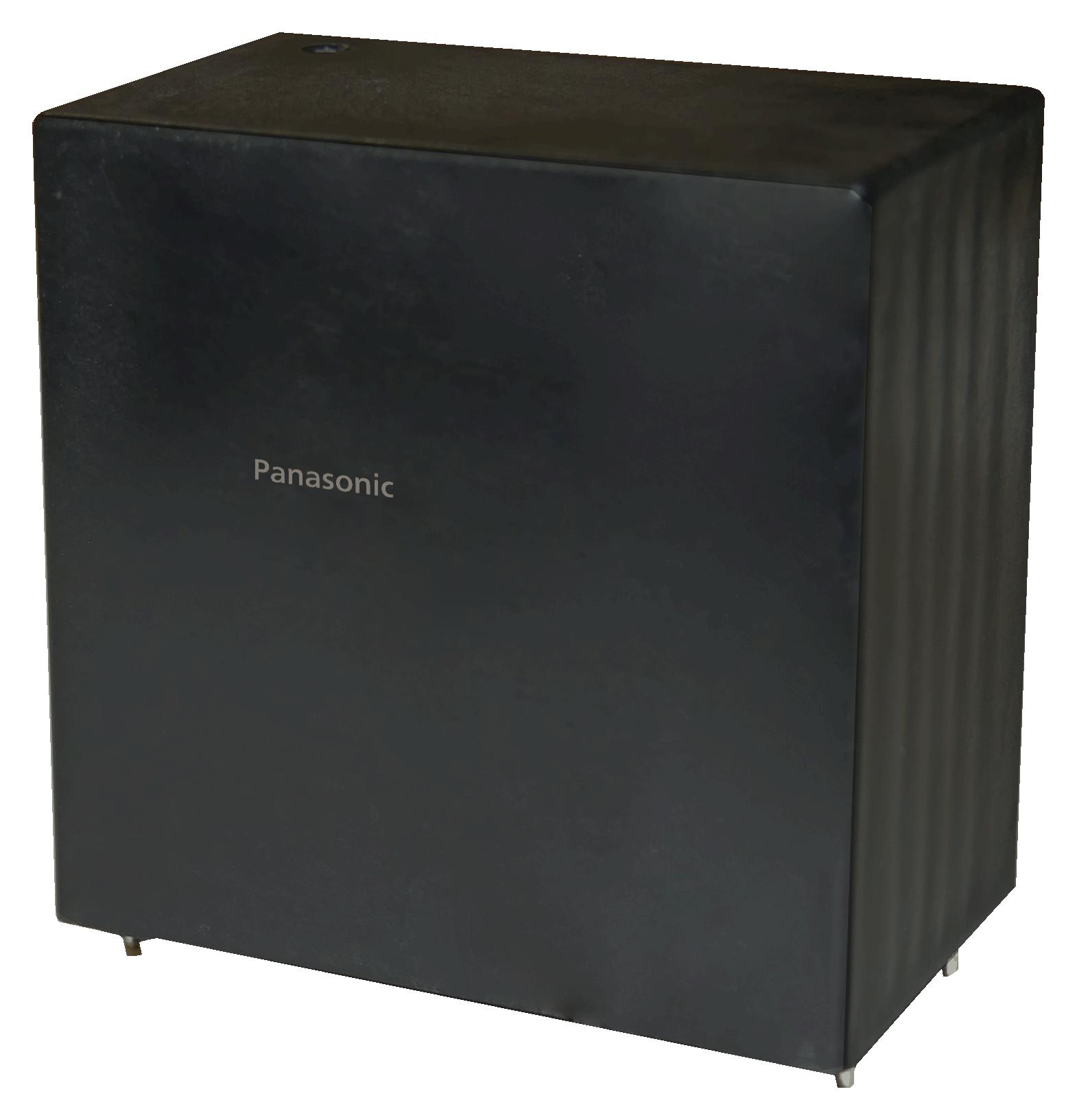

Panasonic EZPQ60335MTB Plastic Film Capacitor
The Panasonic EZPQ series plastic film capacitors are high-reliability components designed for AC filtering, solar inverters, UPS, and industrial power supplies. Featuring metallized polypropylene dielectric with segmented pattern electrodes, these capacitors offer low loss, low ESR, flame retardant UL94 V-0 case, and high moisture resistance at 85 °C and 85% RH. Rated voltages include 330 V, 380 V, and 600 V, with capacitance options from 1 UF to 35 UF. They are RoHS compliant, self-protecting, and engineered for long-lasting performance in demanding power applications.
Panasonic EZPQ60335MTB Plastic Film Capacitor Specifications:
- Dielectric: Polypropylene film
- Electrodes: Metallized dielectric with segmented pattern
- Case Material: UL94 V-0 plastic, flame retardant
- Rated Voltages: 330 V, 380 V, 600 V AC
- Capacitance Range: 1 UF to 35 UF, with tolerance ±5%, +10%
- Temperature Range: -40°C to +105°C, derated at higher temps
- Withstand Voltage: Terminal to case 2000 V AC for 50/60 Hz, 10s
- Insulation Resistance: ≥10,000 MΩ at 20°C and 100 V DC
- Dimensional Parameters: Variable per part number, typical length ~37.5-57.5 mm, width ~15-40 mm
- Features: RoHS compliant, self-protecting, flame retardant, moisture resistant, low ESR, long-term reliability
- Product Certifications: UL, RoHS compliant
Buy the Buy Panasonic EZPQ Series Plastic Film Capacitors Part Number EZPQ60335MTB Online
Purchase Panasonic EZPQ series plastic film capacitors online for dependable power quality solutions. These high-reliability capacitors are suitable for AC filters, solar inverters, UPS, and industrial power supplies. Featuring metallized polypropylene dielectric with segmented electrodes, they offer low loss, low ESR, and flame-retardant UL94 V-0 cases. Designed for long lifespan and moisture resistance at 85°C and 85% RH, these capacitors ensure stable performance in demanding environments. Order now for fast delivery and reliable operation in your electrical systems.
Get Panasonic EZPQ60335MTB today—built for high reliability, low ESR, and optimal performance in AC filtering applications.
Frequently Asked Questions
Where can I buy Panasonic EZPQ60335MTB?
You can click on the BUY or RFQ button to purchase EZPQ60335MTB from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EZPQ60335MTB?
You can download the EZPQ60335MTB datasheet or visit the Panasonic website for support.
Who is the manufacturer of EZPQ60335MTB?
Panasonic
