Panasonic EZPV1B306MTS Plastic Film Capacitor
The Panasonic EZPV series plastic film capacitors are high-reliability, flame-retardant devices designed for AC/DC power supply filtering, solar inverters, wind power systems, and automotive applications. These metallized polypropylene film capacitors feature safety functions, low ESR, long lifespan, and compliance with RoHS and AEC-Q200 standards. Available in various voltages (600V, 800V, 1100V, 1100V for automotive, and 600V models), with multiple capacitance options and terminal configurations (2-pin, 4-pin), they are ideal for industrial, inverter, and on-board power circuits, delivering stable performance and safety.
Panasonic EZPV1B306MTS Plastic Film Capacitor Specifications:
- Dielectric: Polypropylene film
- Electrodes: Metallized dielectric with segmented pattern
- Case Material: UL94 V-0
- Sealing: UL94 V-0
- Terminals: Tinned wires, 2-pin and 4-pin configurations
- Rated Voltage: 600 V, 800 V, 1100 V, 1100 V (automotive), 600 V models
- Capacitance Range: 3 μF to 40 μF (varies by voltage)
- Capacitance Tolerance: +10%
- Temperature Range: -40°C to +105°C
- Insulation Resistance (IR): 3,000 Ω·F at 20°C, 500 V, 60s
- Withstand Voltage: Rated voltage x 150% (initial), Terminal to case 2000 V AC (10 s)
- Dimensions: Various sizes with pitch options 37.5mm or 52.5mm
- Certifications: RoHS, AEC-Q200 compliant
- Flame retardant case and sealing resin for safety
- Low loss, Low ESR for stable electrical performance
- Designed for DC filtering, inverter circuits, renewable energy, industrial power supplies, automotive onboard chargers, and more

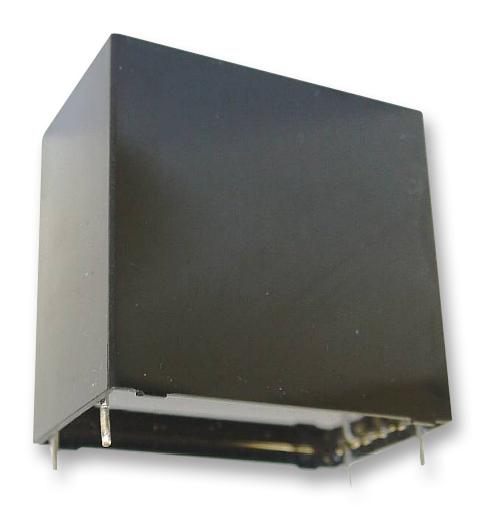

Buy the Buy Panasonic Plastic Film Capacitors Part Number EZPV1B306MTS Online
Discover Panasonic's high-quality plastic film capacitors designed for power electronics, inverter systems, and renewable energy applications. Featuring safety functions, low ESR, and long lifespan, these capacitors ensure reliable performance in industrial and automotive circuits. With RoHS and AEC-Q200 compliance, they meet strict safety and environmental standards. Available in multiple voltages and capacitance options, they are perfect for DC filtering, solar inverters, wind turbines, and onboard chargers. Purchase online today for efficiency, safety, and enduring performance in your power solutions.
Buy Panasonic EZPV1B306MTS now and experience unmatched reliability and performance in your power filtering and energy systems.
Frequently Asked Questions
Where can I buy Panasonic EZPV1B306MTS?
You can click on the BUY or RFQ button to purchase EZPV1B306MTS from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EZPV1B306MTS?
You can download the EZPV1B306MTS datasheet or visit the Panasonic website for support.
Who is the manufacturer of EZPV1B306MTS?
Panasonic
