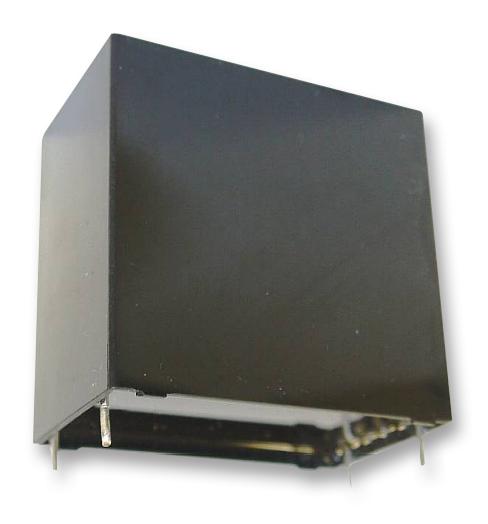

Panasonic EZPV1B505LTB Film Capacitor
This reliable film capacitor series utilizes metallized polypropylene dielectric and is designed for high safety, long life, and high reliability. Flame retardant case and sealing resin enhance safety, while low ESR and loss optimize efficiency. Suitable for DC filtering, solar inverters, wind power, and industrial power supplies, it features UL94 V-0 case, segmented electrodes, and multiple pin configurations. Compliant with automotive standards and RoHS, these capacitors ensure durability and safety in demanding electrical and electronic applications.
Panasonic EZPV1B505LTB Film Capacitor Specifications:
- Dielectric: Polypropylene film
- Electrodes: Metallized dielectric with segmented pattern
- Case Material: UL94 V-0
- Sealing: UL94 V-0
- Terminals: Tinned wires, 2-pin and 4-pin versions
- Rated voltage [DC]: 600 V, 800 V, 1100 V
- Capacitance: 10 µF to 40 µF at 600 V; 8 HF to 65 HF at 800 V; 3 UF to 40 UF at 1100 V
- Temperature range: -40°C to +105°C
- Safety features: High safety with safety function, flame retardant
- Compliance: RoHS, AEC-Q200 (automotive)
- Dimensions: Varies with model, typical pitch 37.5 mm or 52.5 mm
- Resistance: Insulation resistance ≥3000 Ω
- Peak current: Up to approximately 50 Arms depending on model
- Max dv/dt: Ranges from 15 V/μs to 58 V/μs
- Certifications: UL, RoHS, AEC-Q200
Buy the Panasonic EZPV1B505LTB – Reliable Polypropylene Film Capacitor for Industrial Applications
Purchase Panasonic EZPV series film capacitors online for reliable performance in DC filtering, solar inverters, wind power, and industrial power supplies. These flame retardant, UL-certified capacitors feature high safety, low ESR, and long life, ensuring safety and durability in demanding applications. Available with various voltage and capacitance ratings, they are suitable for automotive, renewable energy, and industrial equipment. Secure your order now and enhance your electrical systems with trusted Panasonic quality designed for efficiency, safety, and long-term reliability.
Get Panasonic EZPV high-quality film capacitor today—built for precision, safety, and long-lasting durability in demanding electrical environments.
Frequently Asked Questions
Where can I buy Panasonic EZPV1B505LTB?
You can click on the BUY or RFQ button to purchase EZPV1B505LTB from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EZPV1B505LTB?
You can download the EZPV1B505LTB datasheet or visit the Panasonic website for support.
Who is the manufacturer of EZPV1B505LTB?
Panasonic
