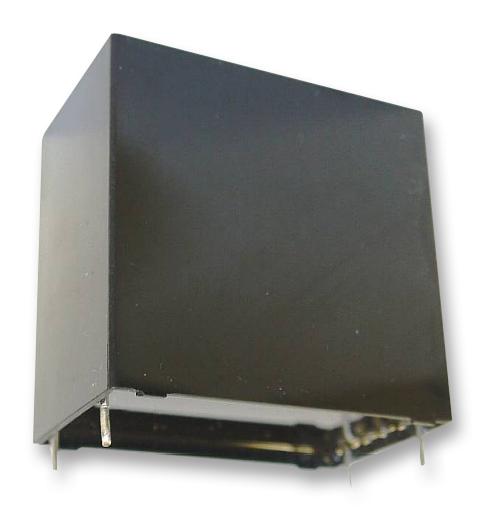

Panasonic EZPV80356MTB Polypropylene Film Capacitor
The Panasonic EZPV series metallized polypropylene film capacitors are designed for high safety, reliability, and low loss. Suitable for DC filtering, solar inverters, wind power, industrial power supplies, and automotive inverter circuits, these capacitors feature flame-retardant UL94 V-0 cases, segmented electrodes for high performance, and compliance with RoHS and automotive standards. Available in various voltages up to 1100 V DC, they offer excellent electrical characteristics, long product life, and reliability for demanding electronic and power applications. Their robust construction ensures safe operation in critical environments.
Panasonic EZPV80356MTB Polypropylene Film Capacitor Specifications:
- Dielectric: Polypropylene film
- Electrodes: Metallized dielectric with segmented pattern
- Case Material: UL94 V-0 flame-retardant plastic
- Sealing: UL94 V-0
- Terminals: Tinned wires, 2-pin and 4-pin configurations
- Rated voltage: 600 V, 800 V, 1100 V DC
- Capacitance: 3 UF to 40 UF (depends on series and voltage)
- Capacitance tolerance: +10 %
- Operating temperature range: -40°C to +105°C
- Insulation resistance: CR 2 3,000 Q-F at 20°C, 500 V, 60s
- Withstand voltage: Rated voltage x 150% between terminals; 2000 V AC from terminal to case for 10s
- Permissible ripple current and ripple dv/dt detailed in datasheets
- Compliance: RoHS, AEC-Q200, suitable for automotive applications
- Dimensions and physical characteristics vary by model and voltage ratings, specific to each series
- Weight varies according to capacitance and size, typically between 15-25 grams
Buy the Buy Panasonic Metallized Polypropylene Film Capacitors Part Number EZPV80356MTB Online
Enhance your electronic and power applications with Panasonic’s high-quality metallized polypropylene film capacitors. Designed for DC filtering, solar inverters, wind power, industrial power supplies, and automotive inverter circuits, these capacitors guarantee safety, long life, and high reliability. Their flame-retardant UL94 V-0 case, segmented electrodes, and RoHS compatibility ensure safe and eco-friendly operation. Perfect for demanding environments, they deliver excellent electrical performance, stability, and durability. Order online now to secure trusted Panasonic quality for your critical power and electronic systems.
Buy Panasonic EZPV80356MTB now and experience unmatched reliability and performance in high-voltage power filtering and automotive control circuits.
Frequently Asked Questions
Where can I buy Panasonic EZPV80356MTB?
You can click on the BUY or RFQ button to purchase EZPV80356MTB from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EZPV80356MTB?
You can download the EZPV80356MTB datasheet or visit the Panasonic website for support.
Who is the manufacturer of EZPV80356MTB?
Panasonic
