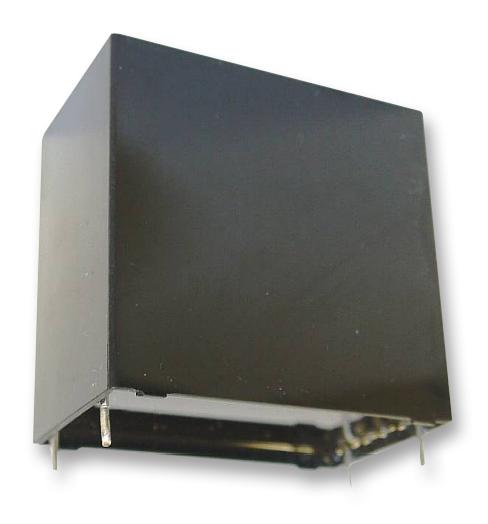

Panasonic EZPV80606MTC Polypropylene Film Capacitor
The Panasonic EZPV series plastic film capacitors are high-reliability components designed for high-voltage applications up to 1100 V DC. Featuring metallized polypropylene dielectric, segmented pattern electrodes, and flame-retardant UL94 V-0 case and sealing resin, these capacitors offer low loss, low ESR, and long service life. Suitable for DC filtering, inverter circuits, solar inverters, wind power, automotive on-board chargers, industrial power supplies, and more, they comply with RoHS and are certified for automotive use with safety functions. Their compact design and high dielectric strength make them ideal for demanding power and conversion applications.
Panasonic EZPV80606MTC Polypropylene Film Capacitor Specifications:
- Dielectric: Polypropylene film
- Electrodes: Metallized dielectric with segmented pattern
- Case Material: UL94 V-0 flame-retardant plastic
- Sealing: UL94 V-0
- Terminals: Tinned wires, 2-pin and 4-pin configurations
- Rated voltages: 600 V, 800 V, 1100 V DC
- Capacitance range: 3 µF to 40 µF depending on series
- Capacitance tolerance: +10%
- Temperature range: -40°C to +105°C
- Insulation Resistance: ≥ 3,000 MΩ at 20°C, 500 V
- Rated current: Up to 150/160 Arms depending on model
- Maximum dv/dt: Up to 58 V/μs for 85°C models
- Dimensions vary with series, typically around 15-43 mm in height and 30-58 mm in length
- Compliance: RoHS, Automotive (AEC-Q200)
Buy the Panasonic Series EZPV Metalized Polypropylene Film Capacitor: EZPV80606MTC
Purchase the Panasonic EZPV series polypropylene film capacitors online today to benefit from their high safety standards, low ESR, and exceptional reliability. Designed for demanding inverter, solar, wind, and automotive circuits, these capacitors deliver long service life and excellent stability. With certified RoHS compliance and safety features suitable for critical power applications, they ensure optimal performance in industrial and automotive environments. Equipped with tinned terminals, compact size, and high dielectric strength, these capacitors are perfect for your power filtering, DC link, and high-voltage circuit needs. Guaranteed quality, order now for fast and secure delivery!
Order your Panasonic Series EZPV 1100 V high-voltage polypropylene film capacitor today and ensure your power circuits operate with dependable efficiency.
Frequently Asked Questions
Where can I buy Panasonic EZPV80606MTC?
You can click on the BUY or RFQ button to purchase EZPV80606MTC from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EZPV80606MTC?
You can download the EZPV80606MTC datasheet or visit the Panasonic website for support.
Who is the manufacturer of EZPV80606MTC?
Panasonic
