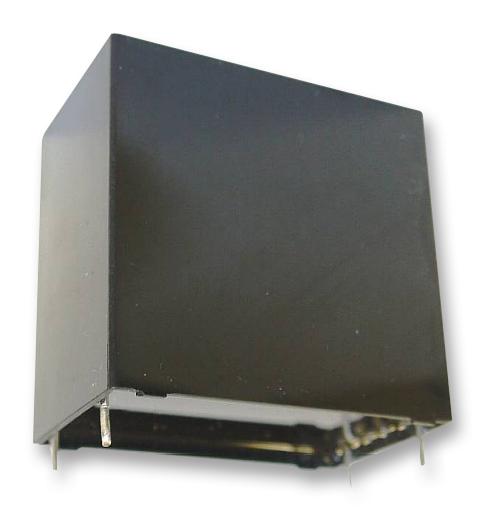

Panasonic EZPV80656MTC Plastic Film Capacitor
The Panasonic EZPV series comprises high-reliability, safety-oriented metallized polypropylene film capacitors designed for industrial and automotive applications. Featuring flame-retardant UL94 V-0 cases, segmentation for improved performance, and compliance with RoHS and AEC-Q200 standards, these capacitors excel in DC filtering, inverter circuits, solar inverters, wind power, auto onboard chargers, and power supplies. They offer low ESR, low loss, long life, and high reliability, making them suitable for demanding environments. Available in various voltages and sizes with both 2-pin and 4-pin terminals, these capacitors ensure safe, stable operation under high voltages and varying temperatures.
Panasonic EZPV80656MTC Plastic Film Capacitor Specifications:
- Dielectric: Polypropylene film
- Electrodes: Metallized dielectric with segmented pattern
- Case Material: UL94 V-0 flame-retardant plastic
- Sealing: UL94 V-0 flame-retardant resin
- Terminals: Tinned wires, 2-pin and 4-pin versions
- Rated Voltage: 600 V, 800 V, 1100 V, 1100 V, 1100 V
- Capacitance Range: 3 μF to 40 μF depending on series and voltage
- Temperature Range: -40°C to +105°C
- Leakage Current: Meets manufacturer specifications, high safety standards
- Insulation Resistance: ≥ 3,000 MΩ at 20°C, 500 V, 60s
- Permissible Voltage: Rated voltage x 150% (over 10s), Terminal to case: 2000 V AC (10s)
- Size: Varies per model, typical length 15–43 mm, width 29–58 mm, height 37.5–57.5 mm
- Standards: RoHS, AEC-Q200 (automotive), UL listed
Buy the Panasonic EZPV – Reliable Film Capacitor for Industrial Applications
Discover Panasonic's high-reliability EZPV series film capacitors, perfect for DC filtering, inverter circuits, solar inverters, and wind power. Designed with a flame-retardant UL94 V-0 case, segmented metallized polypropylene dielectric, and high safety standards, these capacitors deliver low ESR, low loss, long life, and exceptional stability. Suitable for automotive onboard chargers, power supplies, and industrial equipment, they ensure safe operation under high voltages and wide temperature ranges. Purchase online today for fast delivery and dependable performance in critical applications.
Buy Panasonic EZPV series capacitors now and experience unmatched reliability and performance in demanding industrial and automotive environments.
Frequently Asked Questions
Where can I buy Panasonic EZPV80656MTC?
You can click on the BUY or RFQ button to purchase EZPV80656MTC from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EZPV80656MTC?
You can download the EZPV80656MTC datasheet or visit the Panasonic website for support.
Who is the manufacturer of EZPV80656MTC?
Panasonic
