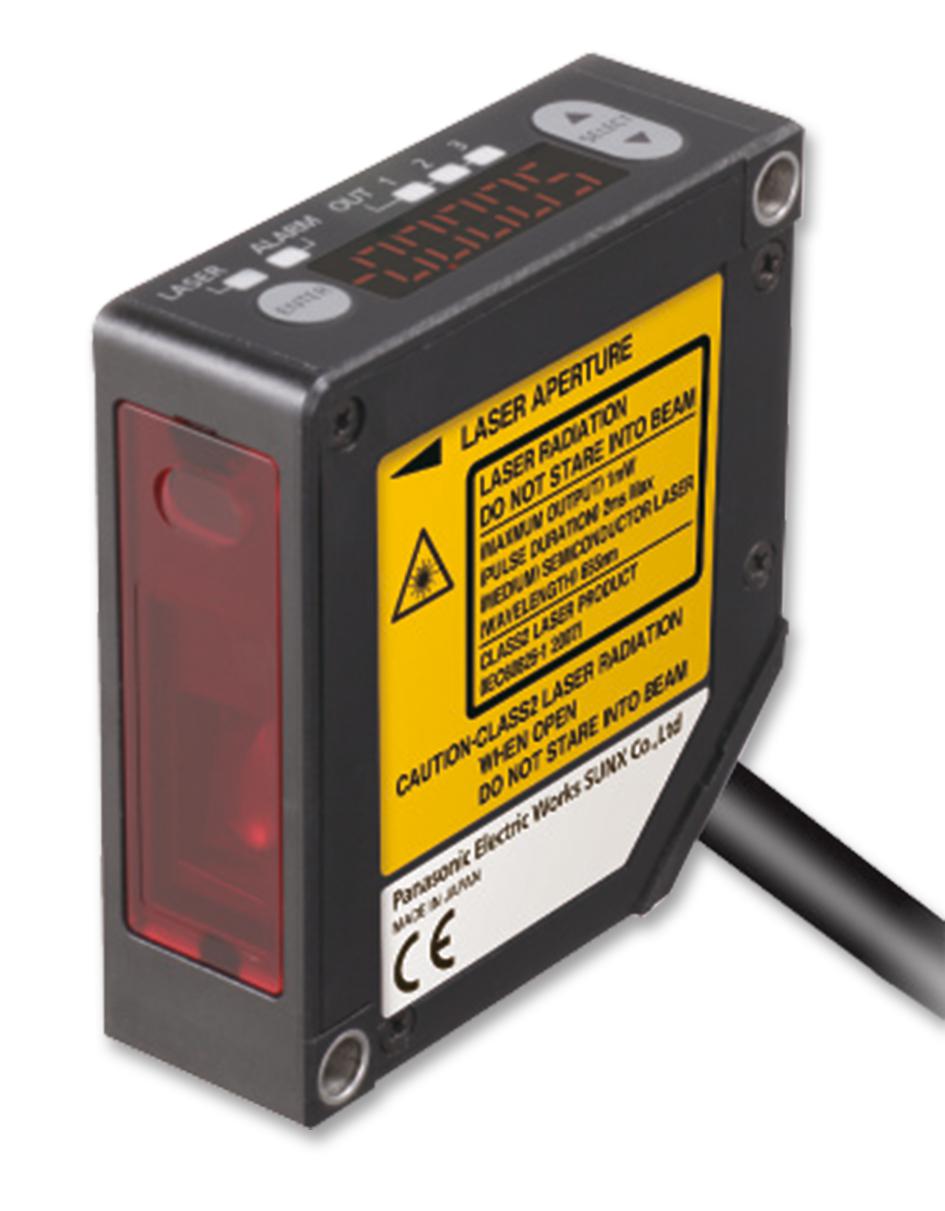

Panasonic HLG112AC5 Laser Displacement Sensor
The high-performance CMOS laser displacement sensor series offers precise measurements with resolutions down to 8 micrometers. Compact and easy to install, it features a built-in digital display for fast setup and parameter adjustments such as sampling cycle and output options. Its IP67-rated waterproof and dustproof enclosure enables reliable operation in challenging environments. Supporting both NPN and PNP outputs, it can connect to various control systems and includes communication via RS-422/485. Ideal for applications like sheet thickness measurement, hollow pipe positioning, and actuator depth detection, it ensures accurate, stable readings in industrial automation settings.
Panasonic HLG112AC5 Laser Displacement Sensor Specifications:
- Measurement center distance: 120 mm (4.724 in)
- Measurement range: +60 mm (2.362 in)
- Resolution: 8 µm (0.315 mil)
- Linearity: 0.1% FS
- Beam diameter: 1.0 x 1.5 mm (0.039 x 0.059 in)
- Light source: Red semiconductor laser, Class 2 (IEC / JIS), Class II (FDA), Peak output: 1 mW, Wavelength: 655 nm
- Receiving element: CMOS image sensor
- Supply voltage: 24 V DC ±10%, including ripple
- Current consumption: 100 mA or less
- Sampling rate: 200 / 500 µs, 1 / 2 ms
- Output: NPN/PNP compatible, voltage output range 0-10.5 V, current output range 3.2-20.8 mA
- Protection: IP67 dust and water proof
- Operating temperature: 10°C to +45°C (+50°F to +113°F)
- Ambient humidity: 35-85% RH
- Vibration resistance: 10-55 Hz, 1.5 mm amplitude
- Shock resistance: 50 G for 3 times in X, Y, Z directions
- Material: Enclosure PBT, front cover acrylic, cable PVC
- Weight: 70 g (excluding cable), 110 g (including cable)
Buy the Buy Panasonic Laser Displacement Sensor Part Number HLG112AC5 Online
Discover the Panasonic Laser Displacement Sensor series featuring high-precision CMOS technology, compact design, IP67 protection for tough environments, and versatile outputs. Easily set measurement parameters with the built-in digital display, making it suitable for a wide range of industrial applications such as sheet thickness measurement, hollow pipe positioning, and actuator depth detection. Supports RS-422/485 communication and both NPN/PNP outputs, ensuring compatibility with various control systems. Enhance your automation process today by ordering online for reliable, stable measurements.
Buy Panasonic HLG112AC5 now and experience unmatched reliability and performance in precise industrial measurement.
Frequently Asked Questions
Where can I buy Panasonic HLG112AC5?
You can click on the BUY or RFQ button to purchase HLG112AC5 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part HLG112AC5?
You can download the HLG112AC5 datasheet or visit the Panasonic website for support.
Who is the manufacturer of HLG112AC5?
Panasonic
