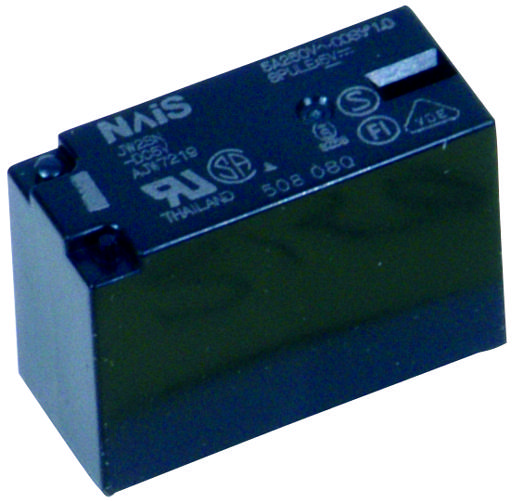

Panasonic JW1AFSNDC12VF PCB Relay
This compact PCB-mount relay operates with a 12 VDC coil voltage, supporting a 10A current capacity with a single-pole single-throw normally open contact configuration. Designed for reliable switching, it features a sealed construction and is suitable for industrial, home appliance, and automation applications. The relay has a high dielectric withstand voltage of 10,000 V surge in 1 second, ensuring transient protection. Its dimensions are optimized for space-saving designs, with coil insulation class B, and it meets global safety standards including UL, VDE, SEMKO, and others. Ideal for versatile and durable switching needs across various environments.
Panasonic JW1AFSNDC12VF PCB Relay Specifications:
- Coil Voltage: 12 VDC
- Contact Configuration: Single-pole single-throw normally open (SPST-NO)
- Contact Capacity: 10A maximum at 250V AC, 30V DC
- Contact Resistance: Max. 100 mΩ
- Dielectric Withstanding Voltage: 10,000 V surge in 1 second
- Insulation Resistance: Min. 1,000 MΩ at 500V DC
- Coil Insulation Class: B
- Dimensions: Compact size optimized for PCB mounting, with a tolerance of +0.1 +0.004 mm
- Operating Temperature Range: -40°C to +85°C
- Certification: UL, VDE, SEMKO, SEV, FIMKO, TV-5 approved
- Sealed construction ensures protection against dust and moisture
- Appropriate for industrial, home appliance, and automation applications
- Environmental Compliance: RoHS directive
- Switching Power: 2500 VA at 250V AC
- Mechanical Life: 10 million operations
Buy the Panasonic JW1AFSNDC12VF – Reliable PCB Relay for Industrial Applications
Enhance your automation and switching systems with the Panasonic PCB Relay designed for durability and precision. Featuring a 12V DC coil, 10A contact capacity, sealed construction, and high dielectric withstand voltage, this relay is ideal for industrial, home appliances, and control applications. Its compact size ensures easy PCB integration, while its compliance with international safety standards guarantees reliable operation in various environments. Invest now in this dependable relay to optimize your electrical switching needs with confidence and efficiency.
Buy Panasonic JW1AFSNDC12VF now and experience unmatched reliability and performance in your automation projects.
Frequently Asked Questions
Where can I buy Panasonic JW1AFSNDC12VF?
You can click on the BUY or RFQ button to purchase JW1AFSNDC12VF from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part JW1AFSNDC12VF?
You can download the JW1AFSNDC12VF datasheet or visit the Panasonic website for support.
Who is the manufacturer of JW1AFSNDC12VF?
Panasonic
