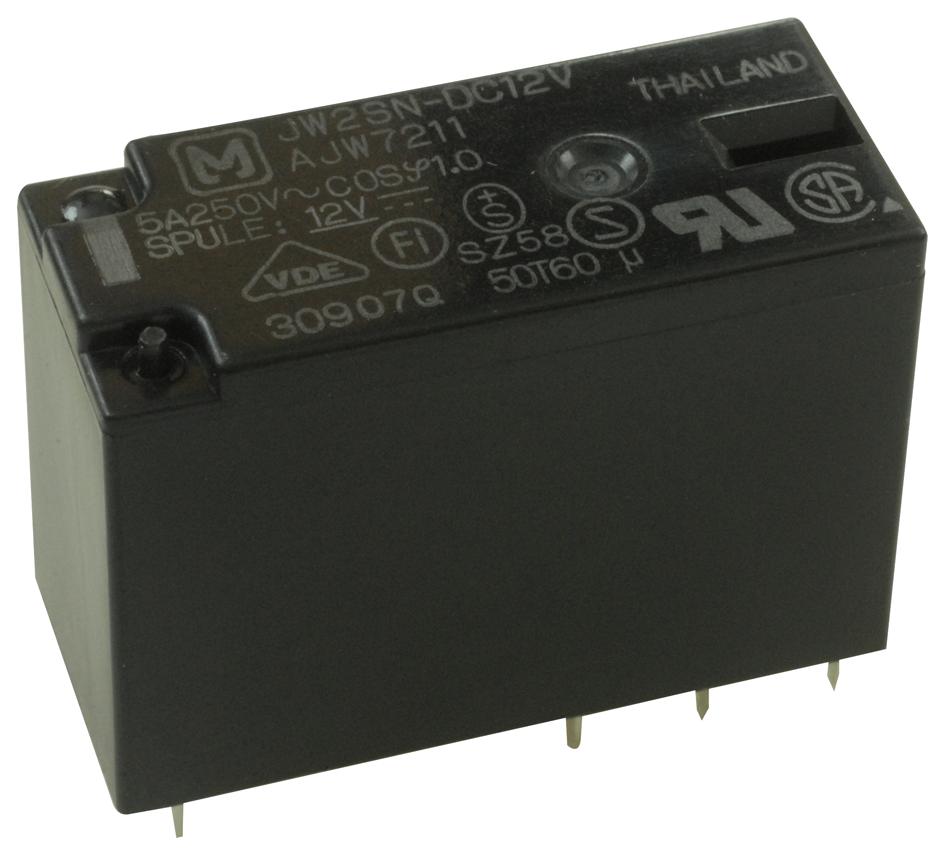

Panasonic JW2SNDC12V Industrial Relay
This dual-pole relay with a 12 V DC coil voltage provides reliable switching for industrial and automation applications. It features a DPDT contact configuration, maximum switching capacity of 5A at 250V AC, and is PCB-mountable for space-efficient installation. The relay is sealed for protection against environmental hazards, with a compact size of approximately 20 mm. It complies with RoHS standards and is suitable for controlling various electrical loads in home appliances, industrial equipment, and control systems, ensuring durability and consistent performance in demanding environments.
Panasonic JW2SNDC12V Industrial Relay Specifications:
- Coil Voltage: 12 V DC
- Contact Arrangement: DPDT (Double-Pole Double-Throw)
- Maximum Switching Current: 5A
- Maximum Switching Voltage: 250V AC
- Contact Resistance: Max. 100 mΩ at 500 V DC
- Insulation Resistance: Min. 1,000 MΩ at 500 V DC
- Operate Time: Max. 15 ms
- Release Time: Max. 5 ms
- Mechanical Life: 10 million cycles
- Electrical Life: 100,000 cycles at rated load
- Isolation Voltage: 1,500 Vrms for 1 min.
- Operating Temperature Range: -40°C to +85°C
- Dimensions: Approximately 20 mm length, suitable for PCB mounting
- Seal: Sealed construction to prevent dust and moisture ingress
- Compliance: RoHS, UL/CSA, VDE, SEMKO, FIMKO, SEV approved
Buy the Panasonic JW2SN – Reliable DPDT Relay for Industrial Applications
Enhance your automation systems with the Panasonic industrial relay. Featuring a 12 V DC coil and DPDT contact configuration, it handles up to 5A at 250V AC. Its sealed, PCB-mount design ensures durability in demanding environments. Perfect for home appliances, industrial equipment, and control panels, this relay offers excellent insulation and long operational life. Order online today to secure reliable switching with fast response times, compact size, and compliance with all major safety standards, making it an ideal choice for engineers and technicians alike.
Buy Panasonic JW2SN now and experience unmatched reliability and performance for your industrial automation and control needs.
Frequently Asked Questions
Where can I buy Panasonic JW2SNDC12V?
You can click on the BUY or RFQ button to purchase JW2SNDC12V from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part JW2SNDC12V?
You can download the JW2SNDC12V datasheet or visit the Panasonic website for support.
Who is the manufacturer of JW2SNDC12V?
Panasonic
