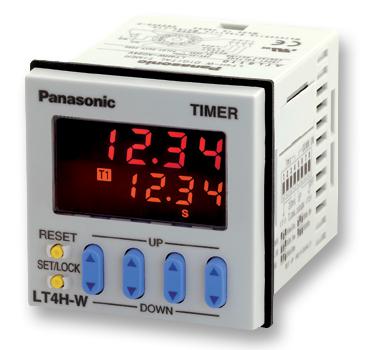

Panasonic LT4HWAC240V Digital Timer
The Panasonic DIN 48 size digital timer features a wide operational time range from 0.01 seconds to 9999 hours, with easy-to-read backlight LCD display and simple seesaw buttons. It conforms to IP66 weather-resistant standards, supports both screw terminal and pin types for flexible installation, and offers changeable panel covers. The timer includes various operational modes such as ON-delay, OFF-delay, and integration, with multiple time range settings. It is UL, c-UL, and CE compliant, suitable for demanding environments, and designed for reliable, precise control in automation and industrial equipment applications.
Panasonic LT4HWAC240V Digital Timer Specifications:
- Type: Digital timer with relay or transistor output
- Rated operating voltage: 100 to 240 V AC or 24 V AC, 12 to 24 V DC options
- Power consumption: Max. 10 VA (AC), Max. 3 W (DC)
- Time range: 0.01 sec to 9999 hours, configurable via DIP switches
- Display: Bright 2-color backlight LCD and 7-segment indication
- Input signals: Start, reset, stop, lock with minimum pulse width of 1 ms (start), 20 ms (lock)
- Output: Form C relay contacts or transistor switching, control capacity 5A/250V AC or 100mA/30V DC
- Protection: IP66 weatherproof standards, includes rubber gasket (ATC18002)
- Physical dimensions: Screw terminal version approx. 64.5 mm body length; pin type approx. 70.1 mm
- Standards: UL File No. E122222, c-UL, CE, RoHS compliant
- Operating temperature: -10°C to +55°C, Humidity max. 85% (non-condensing)
Buy the Buy Panasonic Digital Timer Part Number LT4HWAC240V Online
Purchase the Panasonic digital timer online today and enjoy dependable operation for industrial automation projects. With a wide time setting range from 0.01 seconds to 9999 hours, bright LCD display, and weatherproof IP66 rating, this timer provides excellent value. Its flexible mounting options include screw terminal and pin types, supporting various control modes like delay and integration. UL, c-UL, and CE approved, it is perfect for demanding environments requiring precise timing, robust construction, and easy installation.
Order your Panasonic SeriesLT4HWAC240V digital timer today and ensure reliable control with its wide range of functions and weather resistance.
Frequently Asked Questions
Where can I buy Panasonic LT4HWAC240V?
You can click on the BUY or RFQ button to purchase LT4HWAC240V from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part LT4HWAC240V?
You can download the LT4HWAC240V datasheet or visit the Panasonic website for support.
Who is the manufacturer of LT4HWAC240V?
Panasonic
