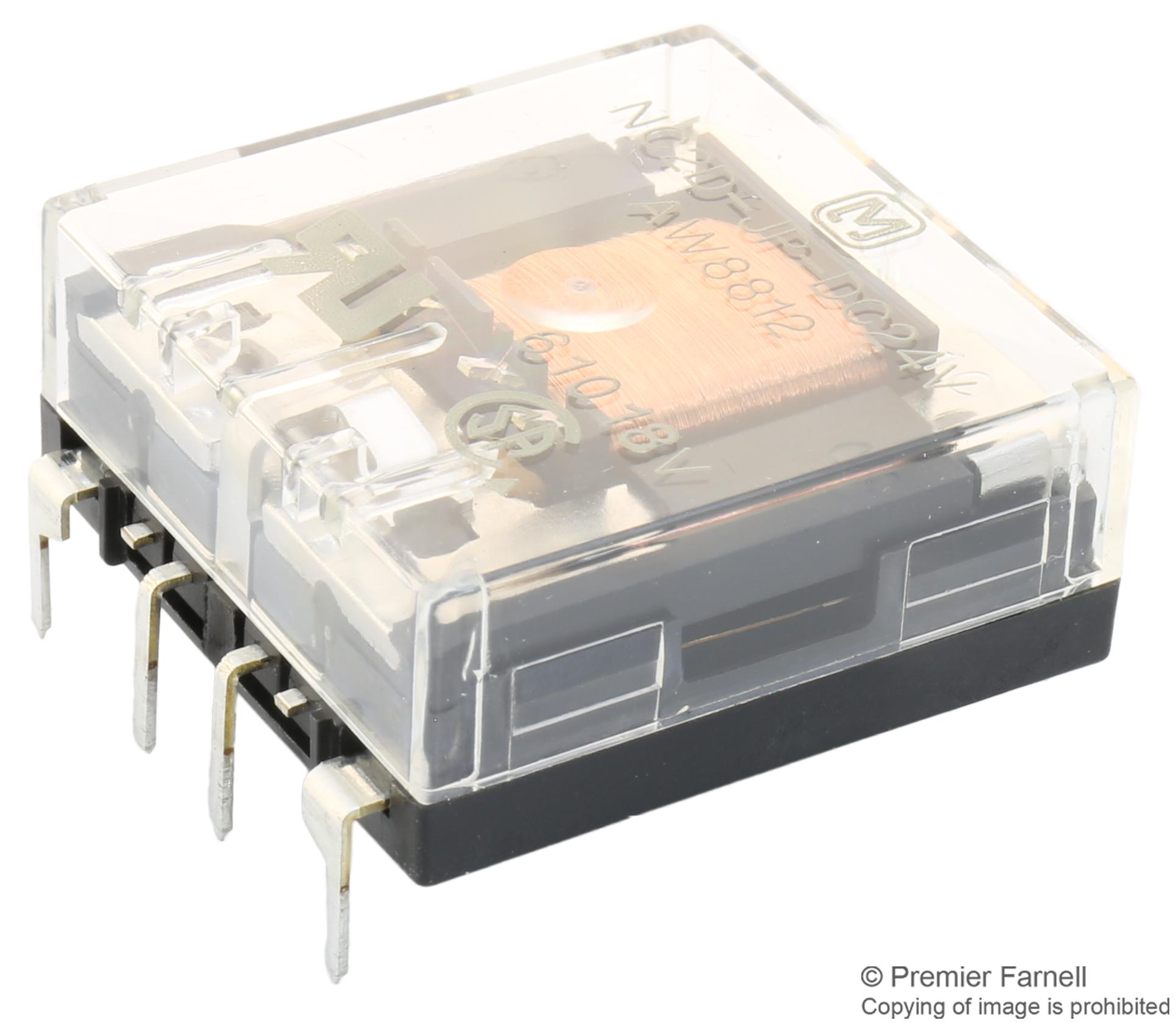

Panasonic NC2DJPDC24V Control Relay
This is a general-purpose relay with a 24 VDC coil voltage. It features a 2C DPDT contact configuration, supporting a current of up to 5 amps. Designed for PCB mounting, it operates as a single side stable switch, suitable for automation, control panels, and industrial applications requiring reliable switching and compact design.
Panasonic NC2DJPDC24V Control Relay Specifications:
- Contact material: Au-clad AgNi type
- Contact arrangement: 2C DPDT
- Rated current: 5A at 250V AC
- Maximum switching power: 1250VA resistive load
- Maximum switching voltage: 250V AC
- Initial contact resistance: Max. 50 mΩ (by voltage drop 6V DC 1A)
- Insulation resistance: Min. 100MQ at 500V DC
- Breakdown voltage: 2000V AC (coil to coil)
- Operate time: Max. 20ms at 20°C
- Release time: Max. 10ms at 20°C
- Operating temperature range: -40°C to +85°C
- Mechanical durability: Min. 5x10^7 cycles
- Electrical durability: Min. 10^5 cycles at rated load
- Dimensions: 21 mm wide, 28 mm deep, terminal pattern for PCB mounting
- Compliance: UL and CSA certified, RoHS compatible
Buy the Panasonic NC2DJPDC24V – Reliable Control Relay for Industrial Applications
Purchase the Panasonic NC2DJPDC24V control relay online today to guarantee dependable performance in industrial automation, control panels, and process automation applications. Featuring a 2C DPDT contact configuration, supporting up to 5A current at 250V AC, and designed for PCB mounting, this relay combines compact design with high reliability. Its single side stable operation and UL/CSA certifications make it ideal for diverse industrial environments. Secure fast delivery and enhance your automation systems with this trusted switch now.
Order your Panasonic NC2DJPDC24V relay today and ensure reliable, high-capacity switching for your automation and industrial projects.
Frequently Asked Questions
Where can I buy Panasonic NC2DJPDC24V?
You can click on the BUY or RFQ button to purchase NC2DJPDC24V from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part NC2DJPDC24V?
You can download the NC2DJPDC24V datasheet or visit the Panasonic website for support.
Who is the manufacturer of NC2DJPDC24V?
Panasonic
