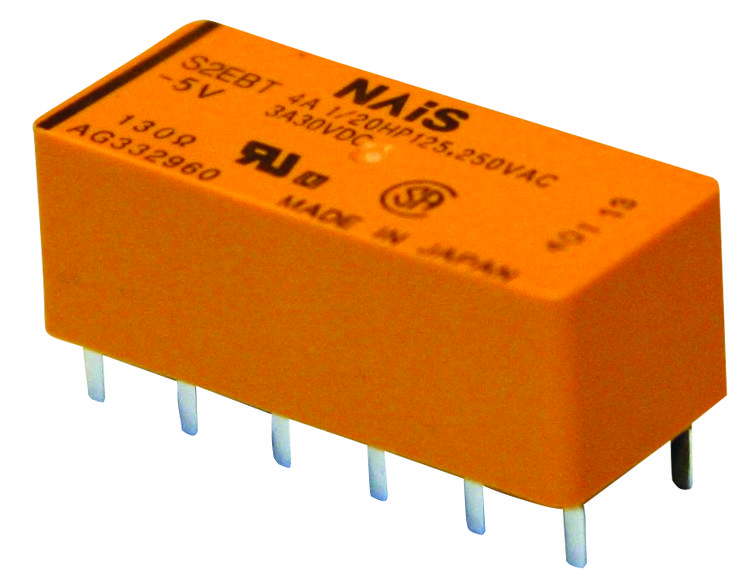

Panasonic S2EB5V industrial relay
This is a general-purpose PCB relay with a 5 VDC coil, featuring a 2A+2B DPST contact configuration with normally open and normally closed contacts. It supports a maximum current of 4A and is designed for reliable switching in diverse electronic and industrial applications. The relay boasts a breakdown voltage of 1,500 Vrms and an insulation resistance exceeding 100 MΩ at 500 V DC. It is built to withstand heat resistance of up to 150°C for 1 hour, ensuring durability and performance in demanding environments. Its compact size allows easy integration into various circuit designs.
Panasonic S2EB5V industrial relay Specifications:
- Maximum continuous current: 4A
- Breakdown voltage: 1,500 Vrms between terminals
- Insulation resistance: >100 MΩ at 500 V DC
- Heat resistance: 150°C for 1 hour
- Contact configuration: 2A+2B DPST, normally open and normally closed
- Coil voltage: 5 VDC
- Operating as single side stable
- Inserting method: Insert until the relay snaps into the socket clip
- Removing method: Pull straight or use a screwdriver for closely mounted sockets
- Dimensions: Not specified in OCR, externally referenced as suitable for PCB mounting
Buy the Buy Panasonic Relay Part Number S2EB5V Online
Purchase Panasonic relay S2EB5V online now to ensure your electronic systems operate smoothly with reliable switching capabilities. Designed for PCB mounting, this 5 VDC coil relay supports up to 4A currents and features a breakdown voltage of 1,500 Vrms. Its heat-resistant design withstands up to 150°C for an hour, making it suitable for diverse applications including industrial automation, control panels, and electronic devices. Order now for quick delivery and enhance your circuit efficiency with Panasonic's trusted relay technology.
Get Panasonic S2EB5V relay today—built for reliable circuit switching with 4A capacity and durable performance.
Frequently Asked Questions
Where can I buy Panasonic S2EB5V?
You can click on the BUY or RFQ button to purchase S2EB5V from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part S2EB5V?
You can download the S2EB5V datasheet or visit the Panasonic website for support.
Who is the manufacturer of S2EB5V?
Panasonic
