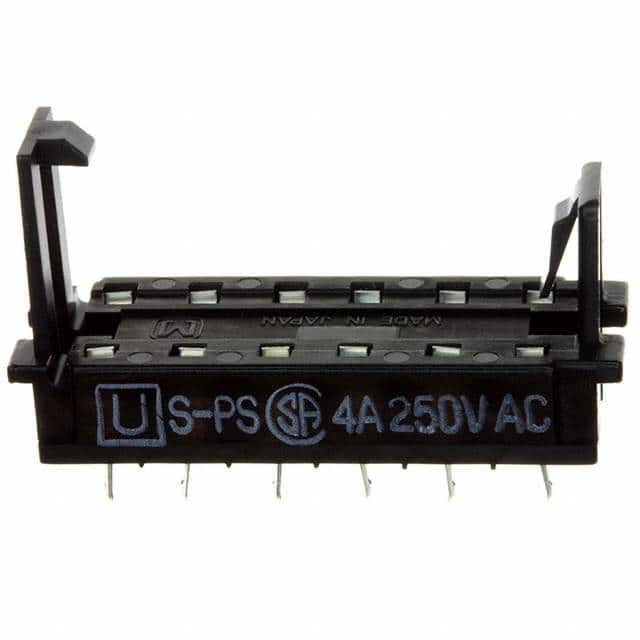

Panasonic SPS Industrial Relay
This industrial relay features a 4A switching capacity at 250V AC and 3A at 30V DC, with multiple contact arrangements including 2, 3, and 4 Form A or B types. It offers high sensitivity, low power consumption, and resistance to shock and vibration, making it suitable for telecommunications, data processing, alarm, and measuring equipment. The relay operates within -40°C to +85°C, with quick operate and release times, and is available in sealed amber and single-side stable configurations, ensuring reliable switching and long service life.
Panasonic SPS Industrial Relay Specifications:
- Maximum switching power: 1000 VA, 90 W
- Contact ratings: 4A at 250V AC, 3A at 30V DC
- Operating temperature: -40°C to +85°C
- Response time: Max. 15 ms (operate), Max. 10 ms (release)
- Contact arrangements: 2, 3, 4 Form A or B types
- Contact resistance: Max. 50 mΩ at 25°C
- Insulation resistance: > 100 MΩ at 500 V DC
- Shock resistance: 50 G, Vibration resistance: 10-55 Hz at 3 mm amplitude
- Coil voltage range: 3V to 48V DC
- Dimensions: Specific to model, PCB pattern provided
- Sealed amber type and single-side stable options available
- Mechanical and electrical life: > 2 x 10^8 operations
- Breakdown voltage between contacts: 1,500 Vrms
Buy the Panasonic SPS – Reliable Industrial Relay for Switching Applications
Enhance your automation systems with this high-capacity industrial relay. Designed for reliable switching up to 4A at 250V AC, it features multiple contact arrangements and robust resistance to shock and vibration. Compact and suitable for various control applications, it offers quick response times, low power consumption, and long life expectancy. Available in sealed and stable configurations, this relay is ideal for telecommunications, data processing, alarms, and measurement devices. Purchase online today for seamless integration and dependable operation.
Buy Panasonic SPS now and experience unmatched reliability and high-performance switching for industrial control and automation.
Frequently Asked Questions
Where can I buy Panasonic SPS?
You can click on the BUY or RFQ button to purchase SPS from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part SPS?
You can download the SPS datasheet or visit the Panasonic website for support.
Who is the manufacturer of SPS?
Panasonic
