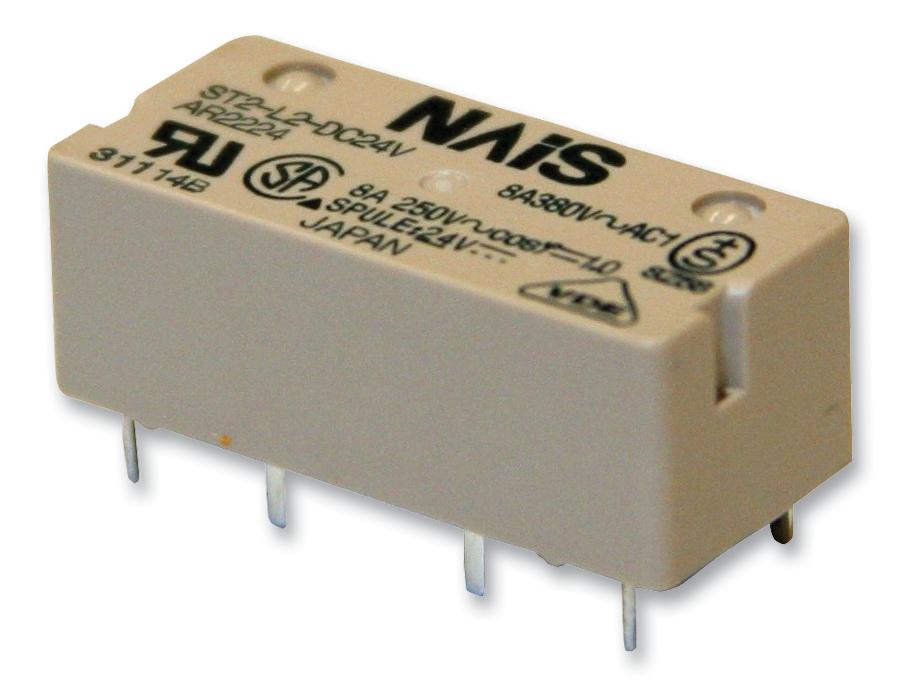

Panasonic ST1DC24VF Industrial Control Relay
These high-density relays feature a sealed design with even small form factors, allowing direct IC-driving with high sensitivity. They support high switching capacity up to 3,040 VA and 8A, with excellent resistance to contact welding and high breakdown voltages suitable for 250 V power circuits. Their RoHS compliance, safety standards conformance, and optional latching functions make them ideal for control applications. Easy PC board integration with larger lead spacing and terminal sockets ensures reliable performance in automated systems and industrial environments.
Panasonic ST1DC24VF Industrial Control Relay Specifications:
- Arrangement: 1 Form A, 1 Form B, 2 Form A
- Contact Material: Au-flashed AgSnO2
- Max. contact resistance: 30 mΩ
- Max. switching power: 3,040 VA, 150W
- Max. switching voltage: 380 VAC, 250 VDC
- Max. switching current: 8A
- Nominal operating power: Approx. 240mW
- Insulation resistance: Min. 1,000 MΩ at 500V DC
- Breakdown voltage: Contact to coil 4,000 Vrms, contact to terminal 2,000 Vrms
- Surge breakdown voltage: 6,000 V
- Operate time: Not specified
- Release time: Not specified
- Heat resistance: 150°C for 1 hour
- Terminal sockets: For PC board and soldering, compatible with 2.54 mm pitch DIL
- Mechanical life: 15 million operations
- Unit weight: Approx. 10g
Buy the Panasonic ST1DC24VF – Reliable Industrial Control Relay for Automation
Purchase Panasonic ST1DC24VF relays online and ensure reliable performance in your control systems. Designed for high capacity switching and enhanced safety, these relays are perfect for automation, industrial machines, and safety-critical applications. Easy to install with PC board sockets and robust construction, they meet safety standards including UL, CSA, and VDE certifications. Whether for new designs or replacements, buy online today for quick delivery and professional-grade reliability in demanding environments.
Get Panasonic ST1DC24VF today—built for precision, high switching capacity, and long-lasting durability in industrial automation.
Frequently Asked Questions
Where can I buy Panasonic ST1DC24VF?
You can click on the BUY or RFQ button to purchase ST1DC24VF from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ST1DC24VF?
You can download the ST1DC24VF datasheet or visit the Panasonic website for support.
Who is the manufacturer of ST1DC24VF?
Panasonic
