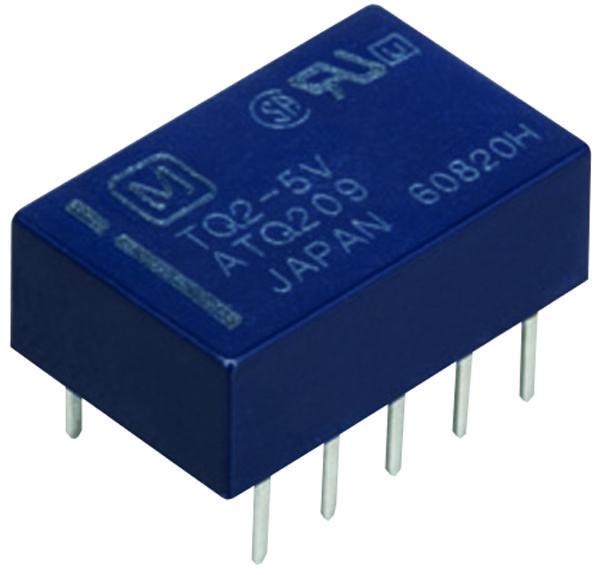

Panasonic TQ2L25V Signal Relay
This signal relay features a 5 VDC coil voltage, a double pole double throw (DPDT) contact configuration, and a current rating of 1 Amp. It is designed for PCB mounting and operates as a 2-coil latching relay.
Panasonic TQ2L25V Signal Relay Specifications:
- Coil Voltage: 5 VDC
- Contact Configuration: Double pole double throw (DPDT)
- Current Rating: 1 A
- Mounting Type: PCB
- Operation Mode: 2-coil latching
- Contact Material: Gold-clad silver
- Initial Insulation Resistance: Min. 1,000 MΩ at 500 V DC
- Maximum Switching Power: 30 W, 62.5 V A
- Surge Voltage Withstand: 1500 V FCC Part 68
- Operating Time: Max. 3 ms
- Reset Time: Max. 3 ms
- Ambient Temperature Range: -40°C to +70°C
- Vibration Resistance: 10 to 55 Hz, double amplitude of 3 mm
- Shock Resistance: Min. 490 m/s² (50G)
- Size: Compact PCB mount design
Buy the Panasonic Series TQ2L Signal Relay: 5 VDC DPDT Control Part Number
Enhance your control circuit with the Panasonic Series TQ2L Signal Relay, featuring 5 VDC coil voltage, DPDT contacts, and a 1 Amp current rating, mountable on PCB. Perfect for electronic and automation projects, its latching operation ensures dependable switching. Designed for durability, it withstands surge voltages of 1500 V and operates within a temperature range from -40°C to +70°C. Choose this compact, high-reliability relay to achieve precise switching and efficient control in your electronic systems.
Order your Panasonic Series TQ2L 5 VDC DPDT control relay today and ensure reliable switching for your electronic projects and automation systems.
Frequently Asked Questions
Where can I buy Panasonic TQ2L25V?
You can click on the BUY or RFQ button to purchase TQ2L25V from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part TQ2L25V?
You can download the TQ2L25V datasheet or visit the Panasonic website for support.
Who is the manufacturer of TQ2L25V?
Panasonic
