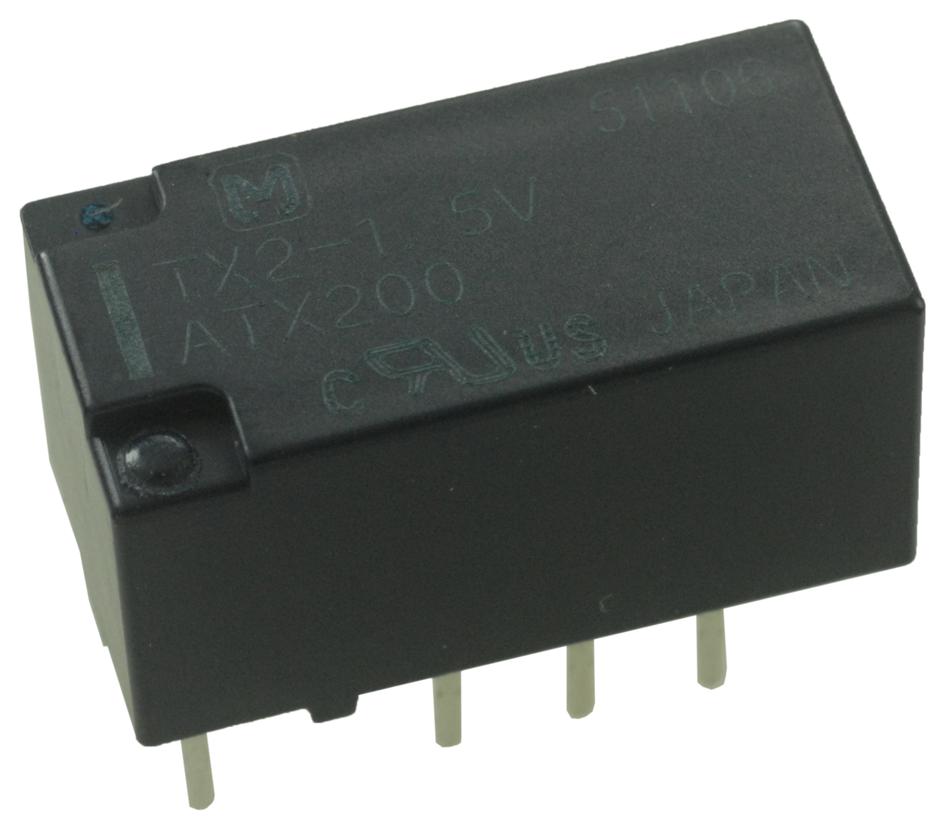

Panasonic TX215V Signal Relay
This signal relay features a coil voltage of 1.5 VDC and a double pole double throw (DPDT) contact configuration. It can handle a current of up to 2 Amps and is designed for PCB mounting. The relay operates as a single side stable switch, suitable for various control applications. It offers high contact capacity, robust surge resistance, and compact size, making it ideal for industrial control systems, automation, and electrical switching tasks.
Panasonic TX215V Signal Relay Specifications:
- Contact Arrangement: 2 Form C
- Coil Voltage: 1.5 V DC
- Nominal Coil Resistance: 23.3 mA at 20°C
- Drop-out Voltage: 16 Ω; Nominal Operating Power: 140 mW
- Contact Material: Ag+Au plated
- Contact Capacity: 2 A 30 V DC
- Max Switching Power: 60 W, 60 VA
- Max Switching Voltage: 220 V DC, 250 V AC
- Max Switching Current: 7.5 A
- Insulation Resistance: Min. 7,000 MΩ at 500 V DC
- Initial Contact Resistance: Max 100 mΩ
- Dielectric Strength: Between contact and coil 2,000 Vrms for 1 min
- Shock Resistance: Min. functional 750 m/s²
- Vibration Resistance: 10 to 55 Hz, amplitude 3.3 mm
- Operating Temperature: -40°C to +70°C
- Size: 15.0(L) x 7.4(W) x 8.2(H) mm
Buy the Panasonic TX215V – Reliable Signal Relay for Industrial Applications
Enhance your control systems with the Panasonic signal relay. Featuring a 1.5 VDC coil, DPDT contacts, 2A capacity, and robust surge resistance, this compact relay is perfect for industrial, automation, and electrical switching applications. Its sealed construction and high insulation resistance ensure durability and safety. Easy to mount on PCBs, it provides dependable switching performance with quick response times. Make your automation seamless—order the Panasonic TX215V online today for reliable control solutions.
Buy Panasonic TX215V now and experience unmatched reliability and performance in your control and automation projects.
Frequently Asked Questions
Where can I buy Panasonic TX215V?
You can click on the BUY or RFQ button to purchase TX215V from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part TX215V?
You can download the TX215V datasheet or visit the Panasonic website for support.
Who is the manufacturer of TX215V?
Panasonic
