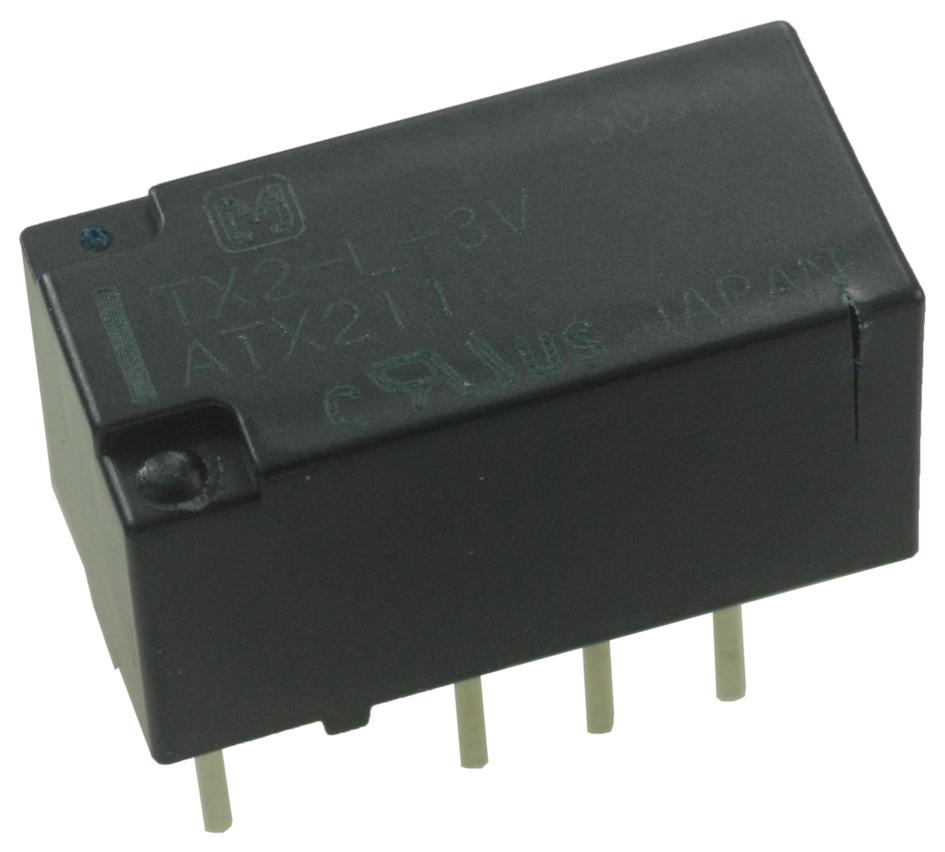

Panasonic TX2L3V Signal Relay
The TX series relay is a compact surface-mount signal relay capable of handling 2A at 30V DC. It features a high breakdown voltage of 2000V between contacts and coil, outstanding surge resistance, and a sealed construction that allows automatic washing. Its high surge withstand capabilities and robust design make it ideal for industrial automation, communication systems, measurement, security, and medical equipment. The relay's gold-clad twin crossbar contacts ensure high contact reliability, supporting durable operations in demanding environments. It offers versatile configurations, including single side stable and two coil latching types, with various coil voltages from 3V to 24V DC.
Panasonic TX2L3V Signal Relay Specifications:
- Arrangement: 2FormC
- Contact Material: Gold-clad twin crossbar contacts, AgPd options available for low-level circuits
- Nominal Contact Capacity: 2 A at 30 V DC, AgPd contact: 1 A at 30 V DC
- Max Switching Power: 60 W (standard), 30 W (AgPd contacts)
- Breakdown Voltage Contact-Coil: 2,000 VRMS, open contact-to-coil: 2,500 VRMS
- Surge Breakdown Voltage: 1,500 V between open contacts, 2,500 V between contact and coil
- Insulation Resistance: Min. 1,000 MΩ at 500 V DC
- Operate Time: Max. 4 ms, Release Time: Max. 4 ms
- Operating Temperature Range: -40°C to +85°C
- Shock Resistance: Functional 750 m/s², Destructive 1000 m/s²
- Vibration Resistance: Functional 10-55 Hz at 3.3 mm amplitude, Destructive 10-55 Hz at 5 mm amplitude
- Dimensions: 15.0(L) x 7.4(W) x 8.2(H) mm for surface-mount version
- Coil Voltages: 3V, 4.5V, 5V, 6V, 9V, 12V, 24V DC
- Packaging: Tube, Tape and reel options available
- Certifications: RoHS compliant
Buy the Panasonic Series TX Signal Relay: TX2L3V
Order the Panasonic TX2L3V signal relay online today to benefit from its high surge tolerance, sealed construction, and 2A contact capacity. Designed for industrial automation, communication, measurement, security, and medical applications, this compact relay features a high breakdown voltage of 2000V and outstanding durability. With various coil voltages and options for surface-mount or through-hole mounting, it ensures reliable operation in harsh environments. Purchase now for quick delivery and experience the performance and dependability Panasonic relays are known for.
Get Panasonic TX2L3V relay today—built for precision, high surge resistance, and reliable industrial performance.
Frequently Asked Questions
Where can I buy Panasonic TX2L3V?
You can click on the BUY or RFQ button to purchase TX2L3V from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part TX2L3V?
You can download the TX2L3V datasheet or visit the Panasonic website for support.
Who is the manufacturer of TX2L3V?
Panasonic
