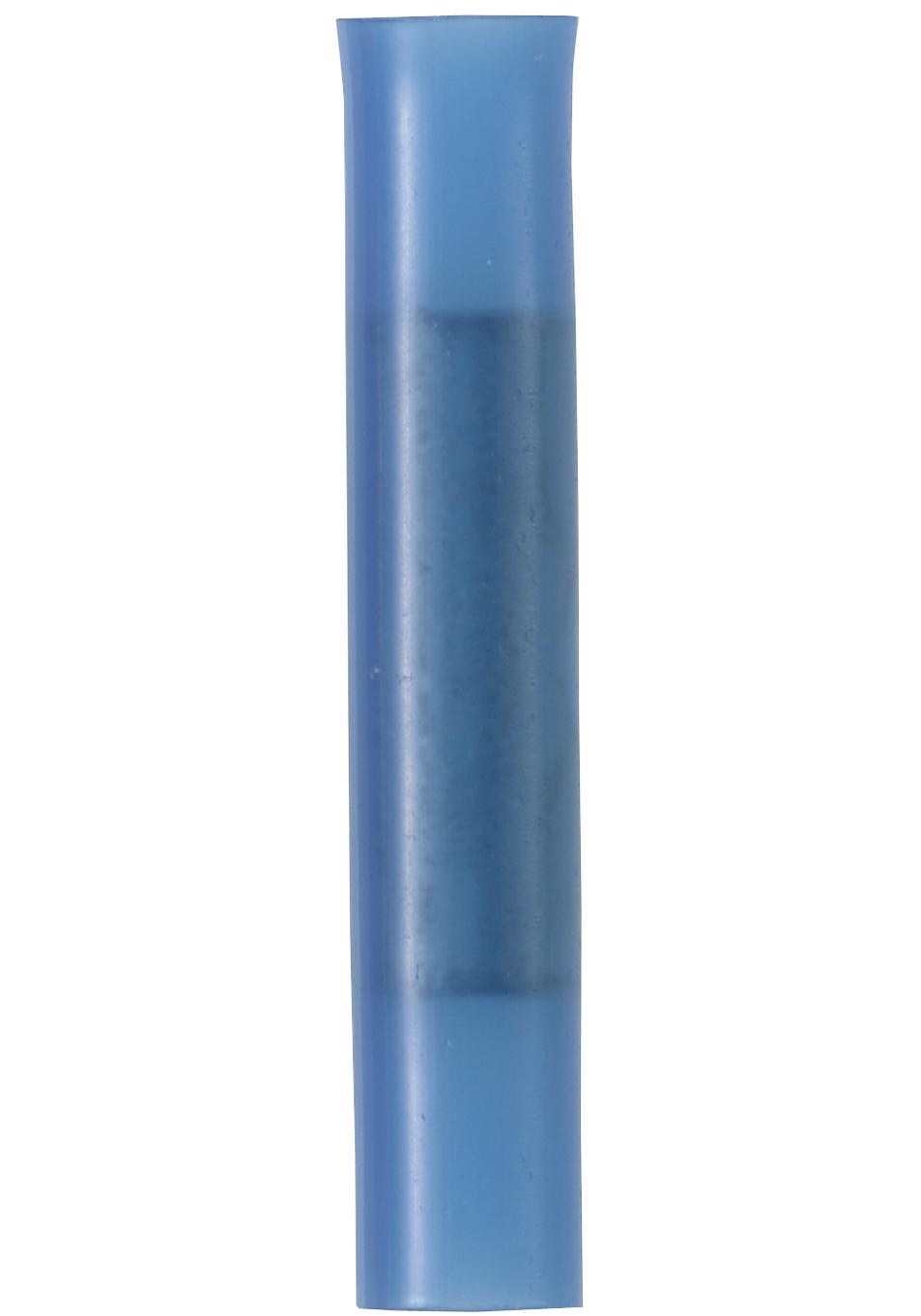

Panduit BSN14C Nylon Insulated Butt Splice
The Panduit BSN14-C is a nylon insulated butt splice ideal for repairing or lengthening wires. Its butted configuration provides a low profile, making it suitable for applications with limited space. The brazed seam protects the terminal barrel during crimping, and the internal wire stop ensures correct wire insertion. This connector is UL and CSA rated up to 600V and is commonly used in electrical and industrial applications where reliable wire connections are essential.
Panduit BSN14C Nylon Insulated Butt Splice Specifications:
- wire_range: 16 – 14 AWG
- color_code: Blue
- max_insulation_in: 0.148
- figure_dimensions_in: 1.15
- recommended_installation_tool: CT-100A, CT-600-A, CT-1550, CT-1551, CT-2500
- std_pkg_qty: 100
- std_ctn_qty: 1000
- ul_flammability: UL 94V-2/HB
- max_insulation_temperature_c: 105
- ul_csa_rating: UL and CSA rated up to 600 V per UL 486C
Buy the BSN14-C PANDUIT Nylon Insulated Butt Splice | myMectronic
Securely purchase the Panduit BSN14-C Nylon Insulated Butt Splice for reliable wire connections.
Buy Now
Frequently Asked Questions
Where can I buy Panduit BSN14C?
You can click on the BUY or RFQ button to purchase BSN14C from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part BSN14C?
You can download the BSN14C datasheet or visit the Panduit website for support.
Who is the manufacturer of BSN14C?
Panduit
