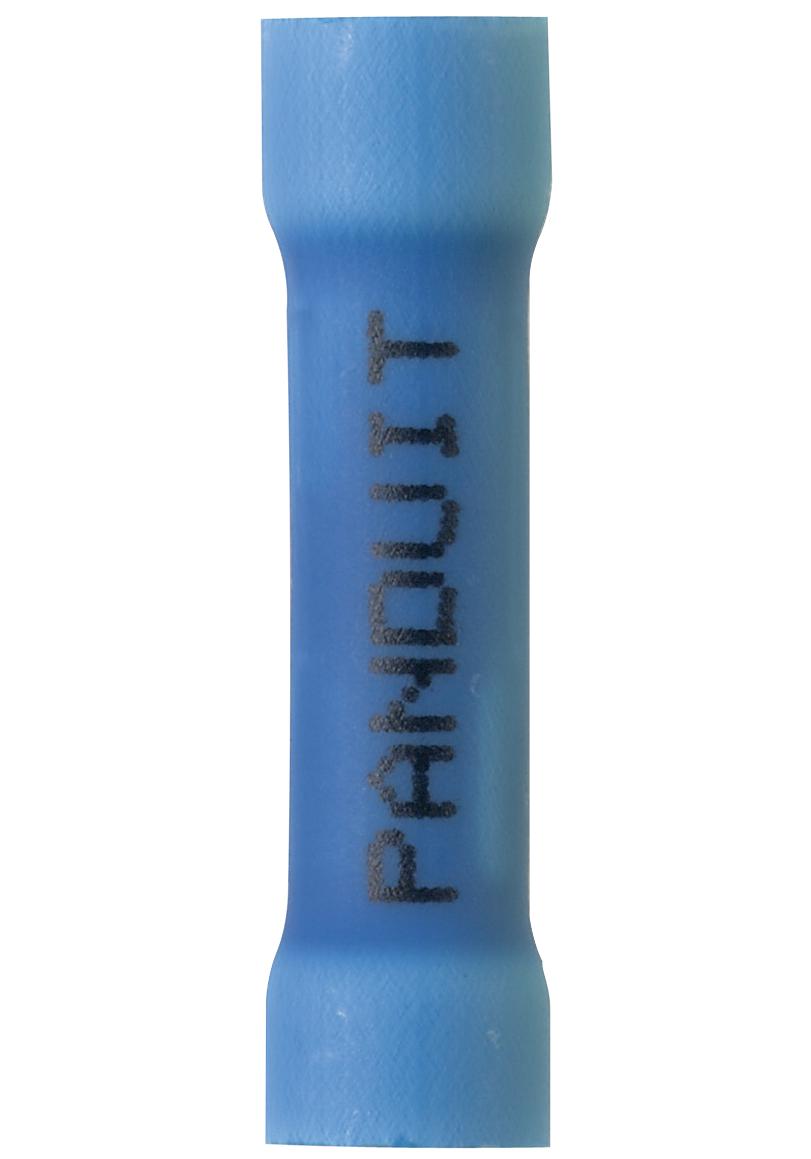

Panduit BSV14XL Butt Splice Vinyl Insulated
The PANDUIT BSV14X-L is a vinyl-insulated butt splice connector designed for splicing two solid or stranded wires together, ideal for repairs or extending wire lengths. Its expanded wire entry accommodates thicker insulation, while the brazed seam protects the terminal barrel during crimping. The internal wire stop ensures correct insertion depth. This connector is UL and CSA rated up to 600V and suitable for applications requiring a maximum insulation temperature of 221°F (105°C). It's a reliable solution for electrical repairs and wire extensions in various industrial settings.
Panduit BSV14XL Butt Splice Vinyl Insulated Specifications:
- Wire Range: 16 – 14 AWG
- Color Code: Blue
- Max Insulation (In.): 0.211
- Figure Dimensions (In.): 1.04
- Recommended Installation Tool: CT-100A, CT-600-A, CT-1550, CT-1551, CT-2500
- Standard Package Quantity: 50
- Standard Carton Quantity: 500
- UL Flammability: UL 94V-0
- Maximum Insulation Temperature: 221°F (105°C)
- UL and CSA Rating: Up to 600 V per UL 486C
Buy the BSV14X-L PANDUIT Butt Splice Vinyl Insulated | myMectronic
Securely purchase the PANDUIT BSV14X-L butt splice connector online for reliable wire connections.
Buy Now
Frequently Asked Questions
Where can I buy Panduit BSV14XL?
You can click on the BUY or RFQ button to purchase BSV14XL from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part BSV14XL?
You can download the BSV14XL datasheet or visit the Panduit website for support.
Who is the manufacturer of BSV14XL?
Panduit
