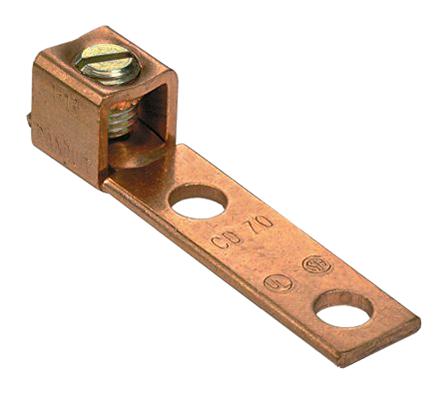

Panduit CD3536SLQY Copper Tongue Lug Connector
The PANDUIT CD35-36SL-QY is a robust copper tongue lug connector engineered for reliable power distribution and grounding applications. This connector features a single barrel construction with two holes, facilitating secure attachment to studs. Its straight tongue design ensures easy and precise connections. Designed to accommodate a wide range of conductor sizes from #14 AWG to #6 AWG, it's ideal for industrial machinery, electrical panels, and other demanding environments. The connector's copper construction provides excellent conductivity and durability, ensuring long-lasting performance.
Panduit CD3536SLQY Copper Tongue Lug Connector Specifications:
- Std Pallet Weight (lb): 0.0000
- Std Ctn Volume (cf): 0.0000
- Std Ctn Weight (lb): 0.0000
- Std Pkg Qty: 25
- Std Pallet Volume (cf): 0.000000
- RoHS Compliancy Status: Compliant
- Part Description: Copper, single barrel, two-hole, straight tongue lug.
- Hex Size (In.): **
- Stud Hole Size (In.): 3/16
- Tightening Torque (In-Lbs): 20-35
- Catalog Item: Yes
- Tongue Width (In.): 0.38
- Tongue Thickness: 0.07
- Current Rating (Amps): 50
- Copper Conductor Size Range: #14 AWG - #6 AWG, (2) #10 AWG, (2) #12 AWG, (2) #14 AWG, (1) #10 AWG with (1) #12 AWG, (1) #12 AWG with (1) #14 AWG
- Product Group Assignment: Power Connectors
- Pricing Description: Copper Mech Lug, 2 Hole, Straight Floating Tongue, #14 - #6 AWG, 3/16" (4.8mm) Stud
- Length (mm): 54.1
- Length (In.): 2.13
- Height (mm): 13.2
- Height (In.): 0.49
- Content Ready For Web: Yes
- Hex Size (mm): **
- Tongue Width (mm): 9.7
- Tongue Thickness (mm): 1.8
- Min Order Qty: 1.0000
