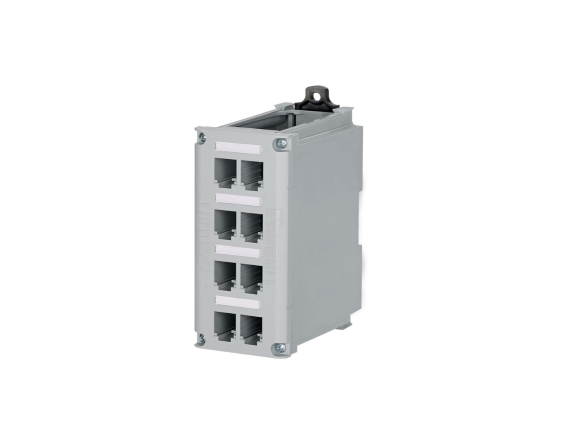

Panduit CDPP8RG 8-Port DIN Rail Patch Panel
The Panduit IndustrialNet 8-Port DIN Rail Mount Copper Patching Solution offers a compact and organized solution for industrial networking. Constructed from high-impact polycarbonate, this panel mounts securely to a standard 35mm DIN rail and accepts Mini-Com modules for flexible connectivity. Designed for use in zone enclosures or control panels, it consolidates patching onto the DIN rails, enabling efficient cable management and easy MACs (Moves, Adds, and Changes). The panel's modular design and clear labeling contribute to simplified network administration and troubleshooting.
Panduit CDPP8RG 8-Port DIN Rail Patch Panel Specifications:
- Standards: Norme International Standard CEI IEC 60715; DIN EN 60715; DIN EN 50022; DIN 46277-3; BS 5584:1978; IEC 60068; cULus Listed to UL1863
- Material: UL94V-0, Impact-resistant polycarbonate
- RoHS Compliance: Compliant
- Mounting Options: Mounts to a standard 35mm DIN rail; can also mount to other surfaces using mounting holes in latches
- Packaging: Includes 6-32 x 3/8" phillips head screws to mount faceplate to patch panel and 4 labels and label covers
- Temperature Range: -10°C to 60°C (14°F – 140°F)
- Shielded Applications: Use DIN panel CDPP8RG-S for shielded applications
- Port Compatibility: Accepts any Mini-Com Module that occupies a single space
- Dimensions: 2.65 x 4.60 inches (67 x 117 mm)
Buy the CDPP8RG Panduit 8-Port DIN Rail Patch Panel | myMectronic
Purchase the Panduit CDPP8RG 8-Port DIN Rail Patch Panel securely and efficiently for your industrial networking needs.
Buy Now
Frequently Asked Questions
Where can I buy Panduit CDPP8RG?
You can click on the BUY or RFQ button to purchase CDPP8RG from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part CDPP8RG?
You can download the CDPP8RG datasheet or visit the Panduit website for support.
Who is the manufacturer of CDPP8RG?
Panduit
