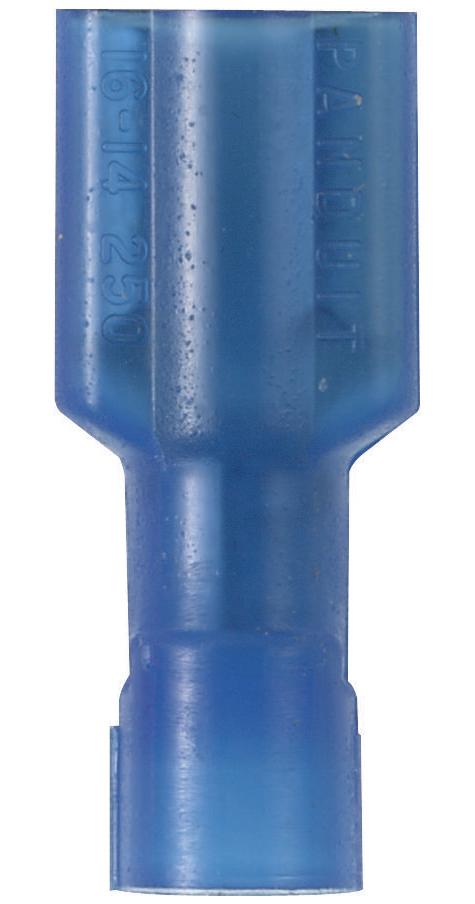

Panduit DNF14250FIBC Female Disconnect Funnel Entry
Panduit's DNF14-250FIB-C female disconnect terminal offers a convenient and reliable connection solution. Its fully insulated funnel entry design simplifies termination and allows for tool-free disconnection, reducing installation costs. The internal wire stop ensures a high-quality connection, while the UL and CSA ratings up to 600V make it suitable for a wide range of industrial applications, including power distribution and control systems. This terminal is ideal for applications where ease of use and secure connections are paramount.
Panduit DNF14250FIBC Female Disconnect Funnel Entry Specifications:
- Wire Range: 16 – 14 AWG, 12 – 10 AWG
- Color Code: Blue, Yellow
- Max Insulation Thickness: 0.160 inch
- L Dimension: 0.78 inch
- W Dimension: 0.29 inch
- H Dimension: 0.18 inch
- Tab Size: 0.187 x 0.032 inch
- Recommended Installation Tool: CT-100A, CT-600-A, CT-1525, CT-2500
- Standard Package Quantity: 100
- Standard Carton Quantity: 1000
- Flammability Rating: UL 94V-2/HB
- Maximum Insulation Temperature: 221°F (105°C)
- Voltage Rating: Up to 600 V per UL 310
