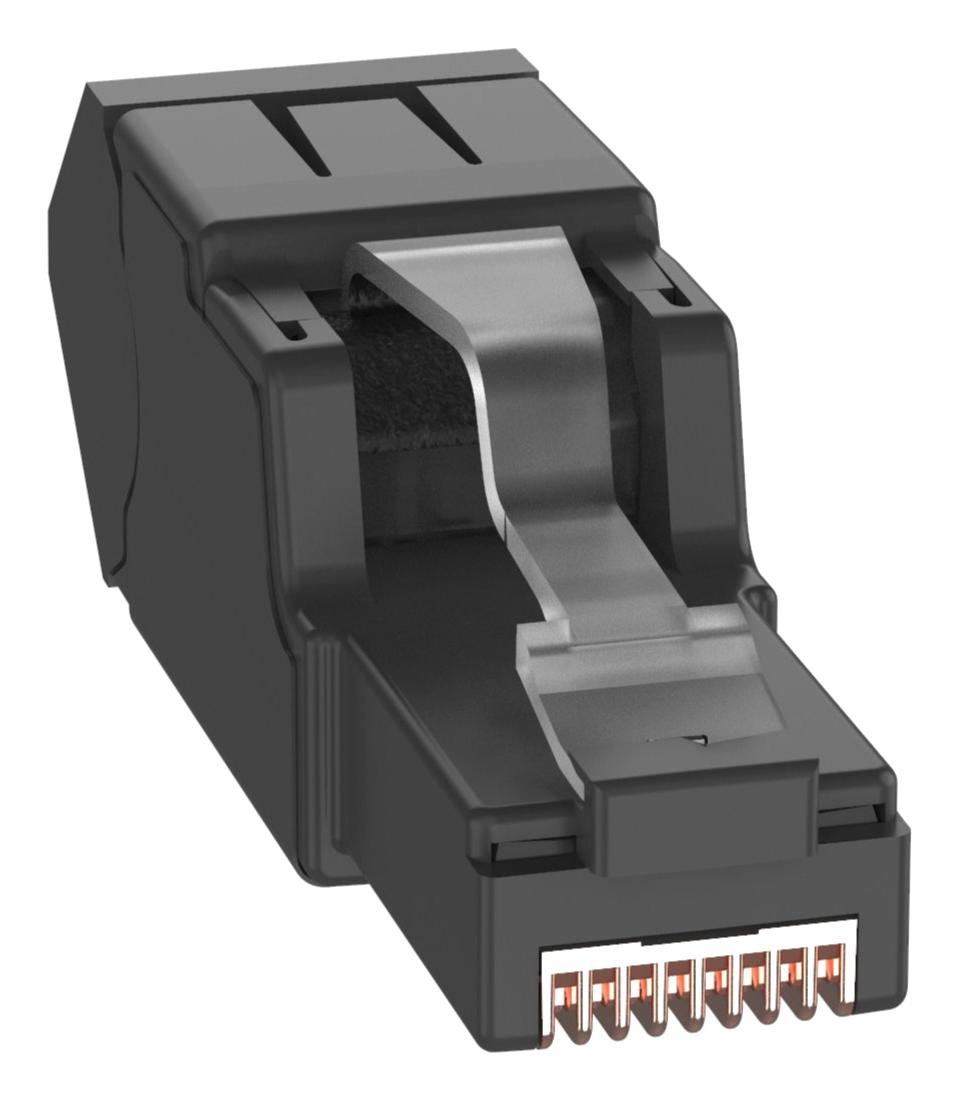

Panduit FPUD6X88MTG Category 6A RJ45 Plug
The TX6A Category 6A UTP Field Term RJ45 Plug offers easy field termination for 4-pair unshielded twisted pair cables, supporting Category 6A performance and backward compatibility with Category 6 and 5e systems. Its proven TG-style termination technology maintains cable pair geometry, reduces conductor untwist, and allows re-termination up to 20 times. Available in straight and 45° up/down angled versions, this plug is ideal for mounting network devices like security cameras, access points, and PoE-enabled equipment in tight spaces. Compatible with 22-26 AWG cables and rated for 2500 mating cycles, it ensures reliable high-speed network connections.
Panduit FPUD6X88MTG Category 6A RJ45 Plug Specifications:
- Cable Compatibility: 4-pair, 22-26 AWG solid or stranded unshielded twisted pair cable with conductor insulation diameters of 0.060 in. and overall cable O.D. 0.200 in. to 0.330 in.
- Performance Standards: Exceeds ANSI/TIA-568.2-D Category 6A, ISO 11801 Class E, and ANSI/TIA-1096-A, supporting up to two field term plugs in channel.
- Material and Durability: Rated for 2500 mating cycles, UL 1863 and UL 2043 compliant for use in air-handling spaces, operating temperature from -40°C to +75°C.
- Connectivity: Supports IEEE 802.3af / 802.3at (PoE/PoE+) and 802.3bt type 3 and 4 (PoE++), with compatibility with high-density port configurations.
- Physical Dimensions: Straight plug length approximately 1.82 inches, angled plug length approximately 2.05 inches, with wire cap assemblies measuring approximately 0.95 inches in length.
- Installation Tools: Requires EGPT for angled and straight options, EGJT-1 for straight only, ensuring easy and reliable termination.
- Additional Features: Re-terminable up to 20 times, slim profile for tight spaces, and proven TG-style forward motion termination technology for high performance.
Buy the Buy Panduit TX6A Category 6A UTP Field Term RJ45 Plug Part Number FPUD6X88MTG Online
Order the Panduit Category 6A RJ45 Field Term Plug online today and experience reliable high-performance network connections. Designed for field installation, it supports PoE, PoE+, and PoE++ applications, ensuring compatibility with a wide range of cables and network devices. Its proven TG-style termination technology ensures quick, secure, and re-usable connections up to 20 times, saving time and costs on network deployment. Perfect for security cameras, access points, and high-density setups, this plug offers durability with thousands of mating cycles and compliance with industry standards. Elevate your network setup with this versatile, easy-to-install field termination solution from Panduit.
Get Panduit FPUD6X88MTG today—built for high-speed network reliability and easy field installation in tight spaces.
Frequently Asked Questions
Where can I buy Panduit FPUD6X88MTG?
You can click on the BUY or RFQ button to purchase FPUD6X88MTG from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part FPUD6X88MTG?
You can download the FPUD6X88MTG datasheet or visit the Panduit website for support.
Who is the manufacturer of FPUD6X88MTG?
Panduit
