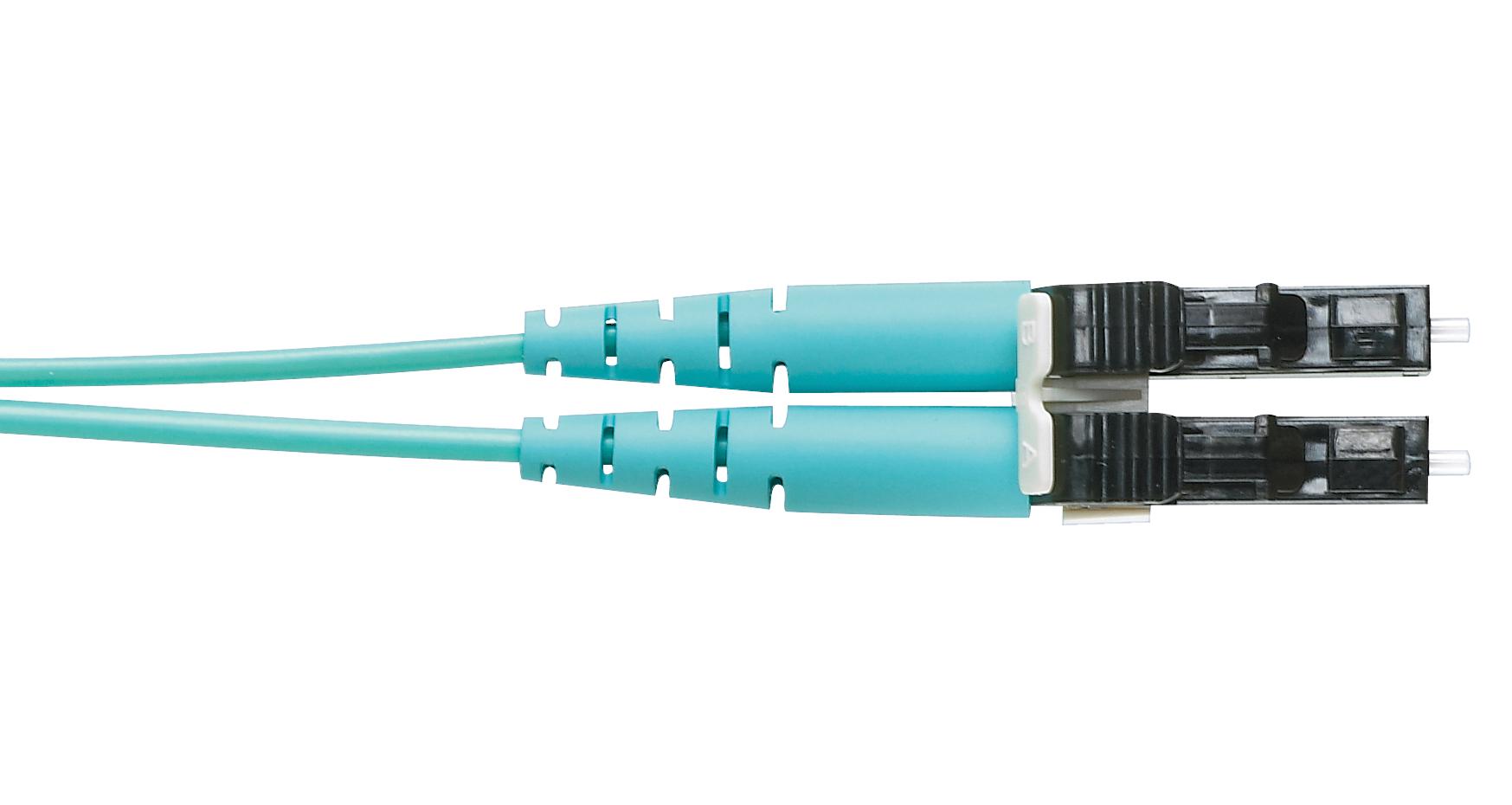

Panduit FX2ELLNLNSNM001 Fiber Optic Patch Cord
Opti-Core fiber optic patch cords and pigtails are designed for high-performance interconnect and cross-connect applications in data centers, telecommunication rooms, and entrance facilities. They support multimode and singlemode fibers, including OM1, OM2, OM3, OM4, and OS1/OS2 types, with various jacket materials such as riser-rated OFNR and LSZH for compliance with cabling standards. These patch cords feature durable LC or SC connectors, minimal insertion loss, and environmental resistance from -40°C to 70°C, ideal for high-speed network deployments and fusion splice field termination.
Panduit FX2ELLNLNSNM001 Fiber Optic Patch Cord Specifications:
- Fiber count: simplex (1-fiber) jacketed, duplex (2-fiber) jacketed zipcord, tight buffered
- Cable outside diameter: 1.6mm duplex, 3mm simplex, 900 micron
- Jacket ratings: OFNR riser rated, LSZH compliant as per IEC standards
- Connector cable retention: 50N @ 0°C, 19.4N @ 90°C
- Connector durability: 500 cycles
- Fiber types: Singlemode OS1/OS2 9/125um, Multimode OM1 62.5/125um, OM2 50/125um, OM3 50/125um, OM4 50/125um
- Minimum bend radius: 16mm (1.6mm cable), 29mm (3mm cable)
- Insertion loss: 0.25dB max (Multimode standard IL), 0.10dB max (Ultra IL), 0.35dB max (LC singlemode), 0.50dB max (SC singlemode)
- Return loss: 26dB min (OM3/OM4), 55dB min (OS1/OS2)
- Operating temperature: -20°C to 70°C, installation temperature: 0°C to 60°C, storage: -40°C to 70°C
- Standards: ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3, TIA-604-10, RoHS compliant
Buy the Panduit Series Fiber Optic Patch Cords: FX2ELLNLNSNM001
Purchase the Panduit fiber optic patch cord online today to ensure seamless connectivity in your high-speed network infrastructure. These patch cords support multimode and singlemode fibers, feature durable connectors, and adhere to the highest safety and environmental standards. With various configurations for length, jacket type, and connector options, you can customize your installation needs. Enjoy fast delivery and expert support to optimize your data center or telecommunication setup. Upgrade your network with the proven performance of Panduit patch cords.
Buy Panduit FX2ELLNLNSNM001 fiber optic patch cords now and experience reliable high-speed data transmission with durable LC and SC connectors.
Frequently Asked Questions
Where can I buy Panduit FX2ELLNLNSNM001?
You can click on the BUY or RFQ button to purchase FX2ELLNLNSNM001 from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part FX2ELLNLNSNM001?
You can download the FX2ELLNLNSNM001 datasheet or visit the Panduit website for support.
Who is the manufacturer of FX2ELLNLNSNM001?
Panduit
