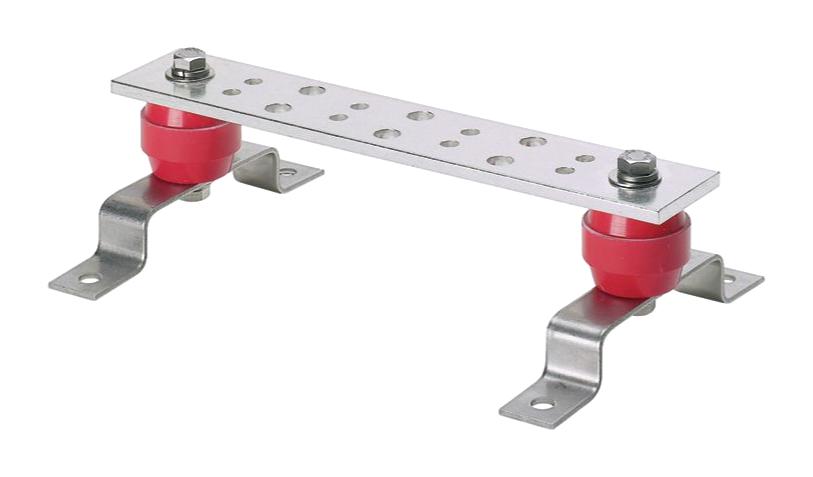

Panduit GB2B0304TPI1 Telecommunications Grounding Kit
The Panduit StructuredGround Telecommunications Room Grounding and Bonding Kits (part number GB2B0304TPI-1) provide a complete grounding solution for telecommunications environments. These kits bond racks to a secondary bonding busbar (SBB/TGB) using a telecommunications equipment bonding conductor (TEBC). The kits include stainless steel hardware, thread-forming screws, and components for ESD protection, ensuring the reliability and safety of telecommunications equipment and personnel. They are designed to meet TIA-607-C compliance standards and offer ease of installation with integrated technology and supporting documentation.
Panduit GB2B0304TPI1 Telecommunications Grounding Kit Specifications:
- Bar Length: 10 In.
- Stud Hole with: 1/4”
- 5/8” Hole Spacing: 4
- 1” Hole Spacing: 3
- TEBC Kits: Pre-terminated jumper on both ends – #6 AWG jumper with 45° bent lug on rack side to straight lug on SBB/TGB.
- SBB/TGB Kits: Pre-assembled with brackets and insulators – bar size 1/4” x 2”.
- Copper Conductor Size: 1/0 AWG
- Compression Lugs for SBB/TGB: Two-hole straight tongue compression lug with window.
- Stud Hole: 1/4”, 3/8”,
- Stud Hole Spacing: 0.50 – 0.63, 1.00 In.
- Armored Fiber Cable Length: 60, 96, 120, 180 In.
- Grounding Kits: Pre-terminated jumper on both ends – straight lug and terminal. Provided with mechanical clamp and cover for terminal and two each #12-24 and M6 hex head thread-forming screws.
- Armored Cable Diameter: Upto 0.84, 0.84 to 1.03 In.
- Grounding Cable Length: 24 In.
- Hardware Kits: include 2 bolts, 2 nuts, 4 flat washers, 2 Belleville washers for SBB/TGB and 2 thread-forming screws for racks
- Equipment Jumper Kits: include .16 oz. of antioxidant and two each #12-24 x 1/2” and M5 x 12mm thread-forming screws
- Jumper Length: 57”, 24”
- ESD Port: Two-hole ESD port with banana jack
- ESD Wrist Strap: 6’ coil cord, banana plug, 1 megohm resistor
- Abrasive Cleaning Pad: 4-1/2” x 6”
