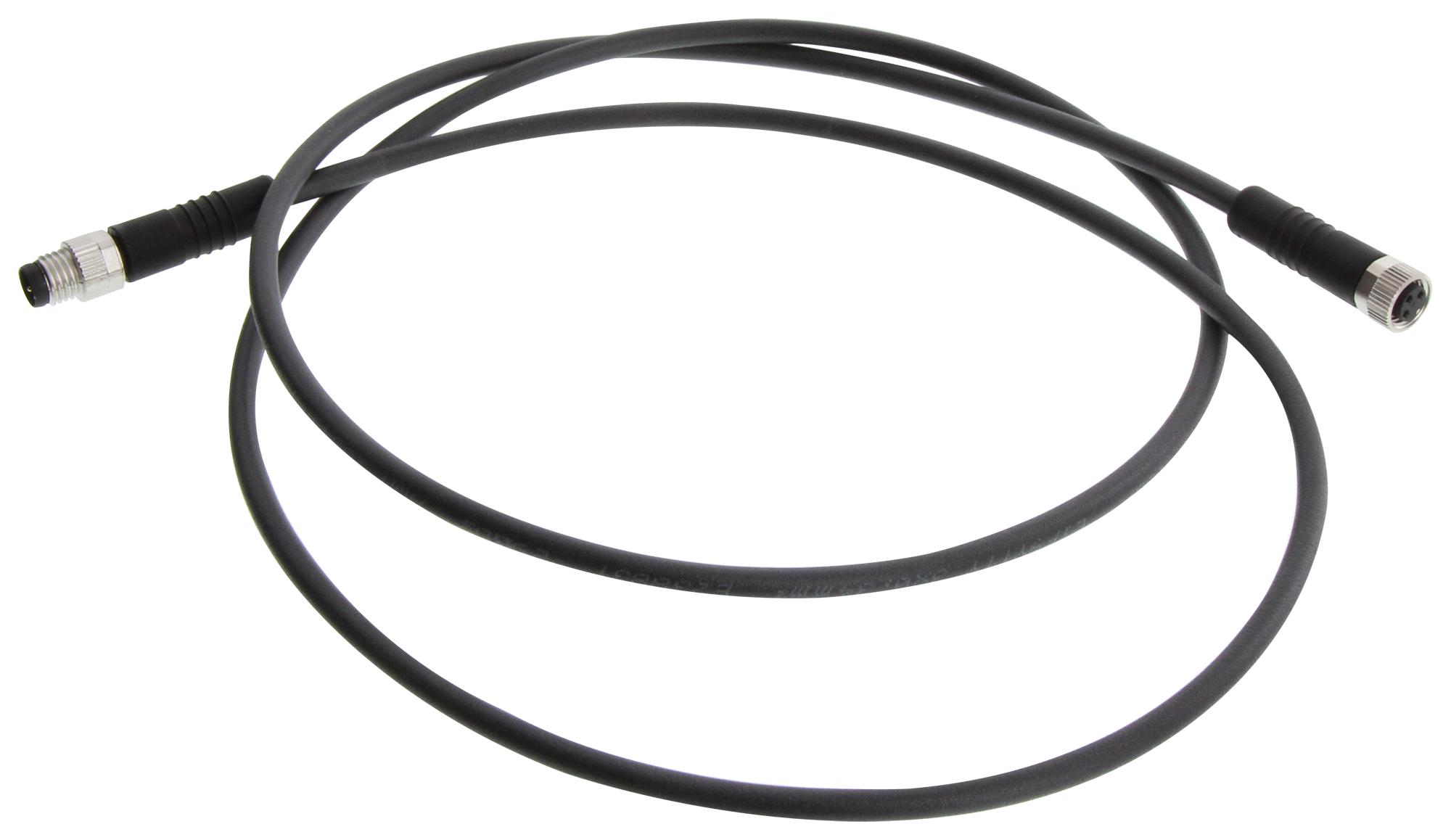

Panduit ICA3E13P2BL1M A-Code Overmolded Cordset
IndustrialNet A-Code Overmolded Cordsets feature robust construction with industrial-grade PUR cable and IP67-rated IP/NEMA/UL/CE compliance. Designed for harsh environments, these cordsets withstand high vibration, temperature extremes from -40°C to +75°C, and light washdowns or temporary immersion. Factory-terminated for quick installation, they include M12 or M8 circular connectors with gold-plated contacts, ensuring reliable electrical connections. Suitable for automation, machinery, and industrial applications, these highly durable, flexible cordsets prevent ingress of water, chemicals, and weld splatter, delivering long-lasting performance in demanding factory conditions.
Panduit ICA3E13P2BL1M A-Code Overmolded Cordset Specifications:
- Cable Material: Industrial-grade PUR
- Connector Standards: IEC 61076-2-101, M12/M8 circular connectors
- Protection Rating: IP67 for dust and water immersion
- Temperature Range: -40°C to +75°C
- Conductor Size: 24 AWG unshielded
- Connector Material: Nickel-plated steel coupling nut, gold-plated contact pins
- Vibration Resistance: Rated to 10 million flex cycles
- Compliance: RoHS, UL Type 12, NEMA 1,3,4,6,6P, IEC IP67
- Applicable for: harsh industrial environments, automotive, machinery OEM, food & beverage, oil & gas, transportation, mining
Buy the Panduit Series A-Code Overmolded Cordsets: ICA3E13P2BL1M
Order the Panduit A-Code Overmolded Cordset online today and ensure durable, high-performance connections in demanding industrial environments. Featuring industrial-grade PUR cable and IP67-rated connectors, these cordsets are factory-terminated for quick installation, saving time and reducing errors. Designed to withstand high vibration, temperature extremes, and water ingress, they provide reliable operation in harsh factory conditions. Perfect for automation, machinery, and instrumentation, these cordsets deliver long-lasting durability, flexibility, and confidence for industrial applications worldwide.
Buy Panduit ICA3E13P2BL1M now and experience unmatched reliability and performance in industrial automation and rugged applications.
Frequently Asked Questions
Where can I buy Panduit ICA3E13P2BL1M?
You can click on the BUY or RFQ button to purchase ICA3E13P2BL1M from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part ICA3E13P2BL1M?
You can download the ICA3E13P2BL1M datasheet or visit the Panduit website for support.
Who is the manufacturer of ICA3E13P2BL1M?
Panduit
