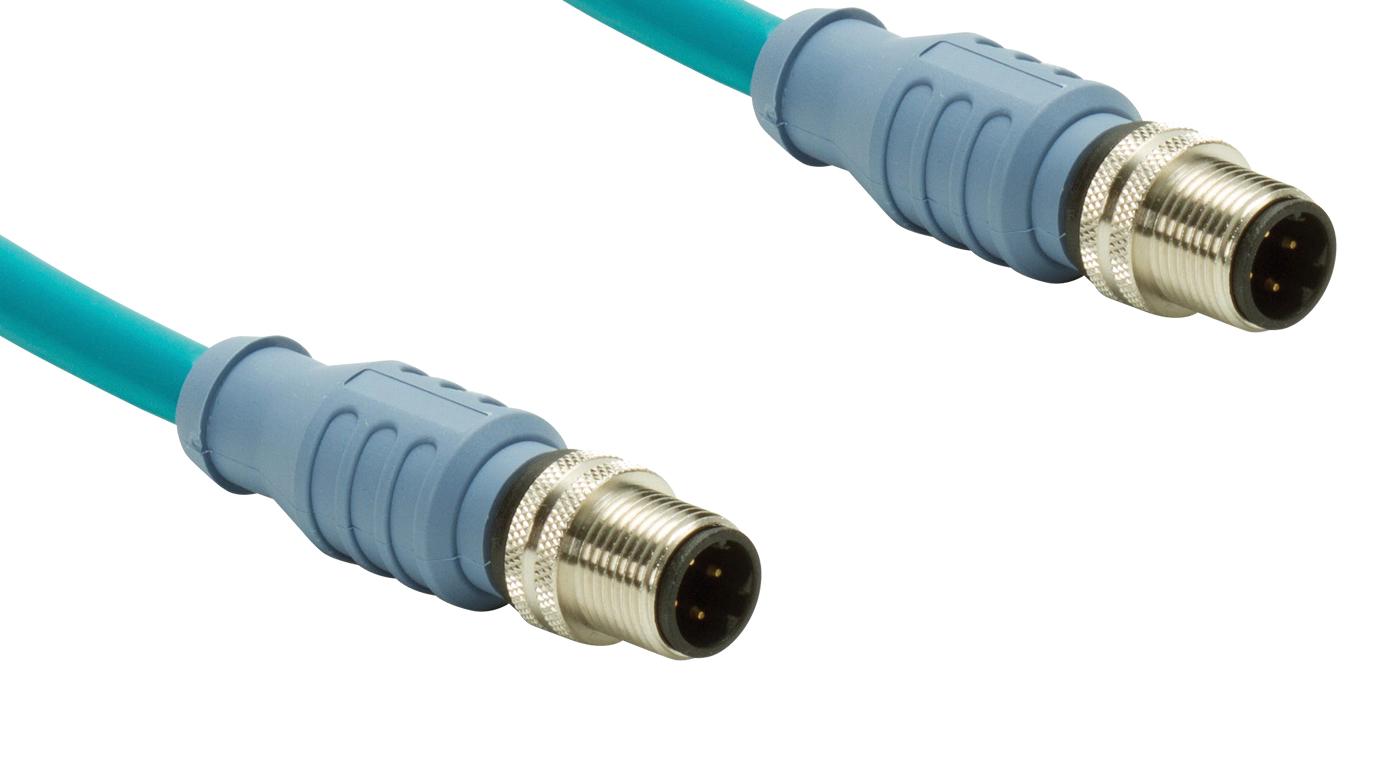

Panduit ICD11T1NTL10M Industrial Ethernet Cordset
IndustrialNet M12 D-Code Category 5e Overmolded Cordsets are robust Ethernet cables designed for harsh industrial environments. Constructed with industrial-grade stranded twisted pair cable rated for 600V, these cordsets feature pre-terminated, overmolded connectors for quick installation. They are IP67, NEMA, UL, and CE rated, resistant to dust and temporary liquid immersion. Suitable for high-flex applications, they handle high vibration, temperature extremes from -40°C to +75°C, and withstand over 35 million flex cycles, ensuring reliable, high-performance data transmission in automotive, manufacturing, and oil and gas industries.
Panduit ICD11T1NTL10M Industrial Ethernet Cordset Specifications:
- Cable Type: Category 5e, stranded, twisted pair, industrial-grade TPU
- Voltage Rating: 600V AWM rated
- Connectors: M12 D-Code male to male, female to RJ45 panel mount, optional field terminable RJ45
- Rating: IP67, NEMA 1, 3, 4, 6, 6P, UL Type 12, IEC IP67
- Temperature Range: -40°C to +75°C (-40°F to +167°F)
- Flex Life: Rated for over 35 million flex cycles
- Platings: Contacts plated with 30 micro-inches of gold
- Standards Compliance: ANSI/TIA-568.2-D, ISO 11801 Class D, IEC 61076-2-101
- Performance: Valid for frequencies up to 100 MHz, suitable for Ethernet, PROFINET, EtherCAT
- Shielding: Shielded STP for interference immunity
- Construction: Overmolded connectors, nickel-plated zinc alloy coupling nut, gold-plated copper-zinc contacts
- Certifications: RoHS, UL, CE, FCC, IEC IP67, NEMA, UL Type 12
Buy the Panduit Series D-Code Ethernet Cordsets: ICD11T1NTL10M
Purchase the Panduit ICD11T1NTL10M Industrial Ethernet Cordset online today for a durable, high-flex, IP67-rated solution ideal for industrial automation, manufacturing, and harsh environment applications. This pre-terminated, overmolded cordset guarantees seamless installation, exceptional performance at frequencies up to 100 MHz, and excellent vibration and temperature resistance. Designed for quick setup with factory termination, it reduces errors, speeds deployment, and ensures reliable connectivity for industrial Ethernet, PROFINET, and EtherCAT systems. Reliable, rugged, and built to last in demanding industrial settings.
Buy Panduit ICD11T1NTL10M now and experience unmatched reliability and high-performance data transmission in harsh industrial environments.
Frequently Asked Questions
Where can I buy Panduit ICD11T1NTL10M?
You can click on the BUY or RFQ button to purchase ICD11T1NTL10M from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part ICD11T1NTL10M?
You can download the ICD11T1NTL10M datasheet or visit the Panduit website for support.
Who is the manufacturer of ICD11T1NTL10M?
Panduit
