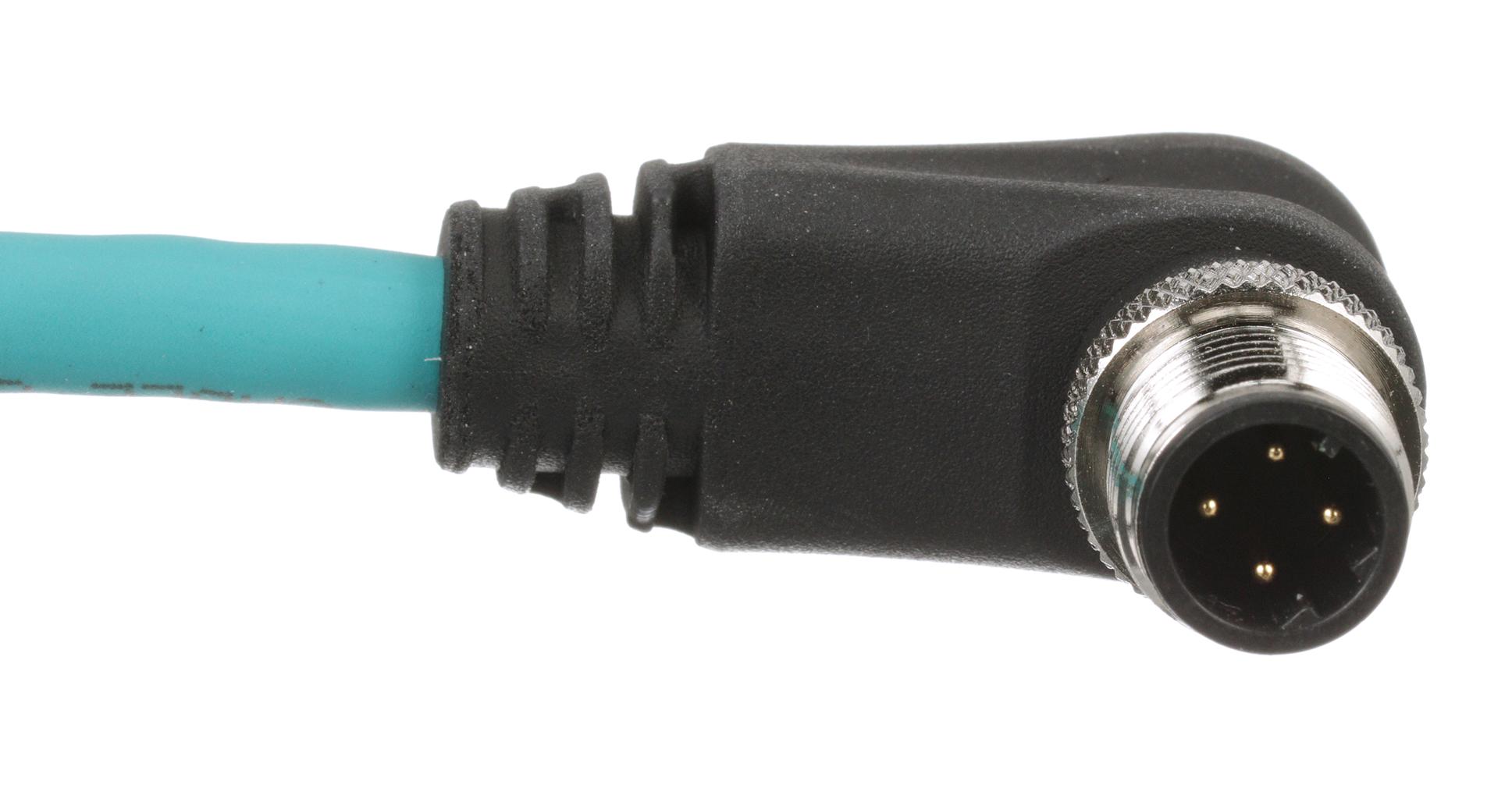

Panduit ICD26T1NTL1M Industrial Ethernet Cordset
IndustrialNet M12 D-Code Category 5e Overmolded Cordsets provide robust, reliable Ethernet connections for industrial environments, rated IP67, NEMA 1, 3, 4, 6, 6P, UL, and IEC standards. Constructed with industrial-grade stranded twisted pair cable, these cordsets are designed for high-flex applications, with a shielded design that withstands harsh conditions, chemicals, weld splatter, and temporary immersion. Factory-terminated and overmolded for ease of installation, they support high-vibration, extreme temperature, and high-temperature environments, making them ideal for automation, automotive, oil & gas, and manufacturing sectors.
Panduit ICD26T1NTL1M Industrial Ethernet Cordset Specifications:
- Cable Type: Stranded, twisted pair Category 5e, industrial-grade, UTP and STP
- Voltage Rating: 600V AWM rated
- Jacket: TPU, flame retardant (CMX/CM)
- Connector: M12 D-Code male to male, D-Code female to RJ45 panel mount, angled connectors
- Standards: T568B, IEC 60603-7-41, ANSI/TIA-568.2-D, ISO 11801 Class D, TIA-1096-A
- Performance: Exceeds channel and component standards from 1 to 100 MHz
- IP Rating: IP67 for dust and water resistance
- Mechanical: Rated for 35 million flex cycles, robust construction
- Materials: Gold plated contacts, nickel plated zinc alloy coupling nut, copper-zinc alloy contacts
- Temperature Range: -40°C to +75°C (-40°F to +167°F)
- Certifications: UL Type 12, NEMA, CE, RoHS, IEC 61076-2-101, UL Listed
- Application Environments: Harsh factory settings, automation, automotive, oil & gas, mining, transportation
Buy the Panduit Series D-Code Ethernet: ICD26T1NTL1M
Purchase the Panduit IndustrialNet D-Code Category 5e Overmolded Cordset now to guarantee reliable Ethernet connectivity in industrial settings. Designed with rugged overmolded TPU jacket, it withstands chemicals, weld splatter, and temporary immersion, making it ideal for automation, automotive, and manufacturing applications. Factory-terminated for quick installation, it supports high-flex demands and extreme temperature ranges, rated IP67 for dust and water resistance. Trust in robust, high-performance connection solutions that meet industry standards and enhance system reliability in harsh environments.
Buy Panduit ICD26T1NTL1M overmolded Ethernet cordset now and ensure reliable, high-performance industrial connectivity in harsh environments.
Frequently Asked Questions
Where can I buy Panduit ICD26T1NTL1M?
You can click on the BUY or RFQ button to purchase ICD26T1NTL1M from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part ICD26T1NTL1M?
You can download the ICD26T1NTL1M datasheet or visit the Panduit website for support.
Who is the manufacturer of ICD26T1NTL1M?
Panduit
