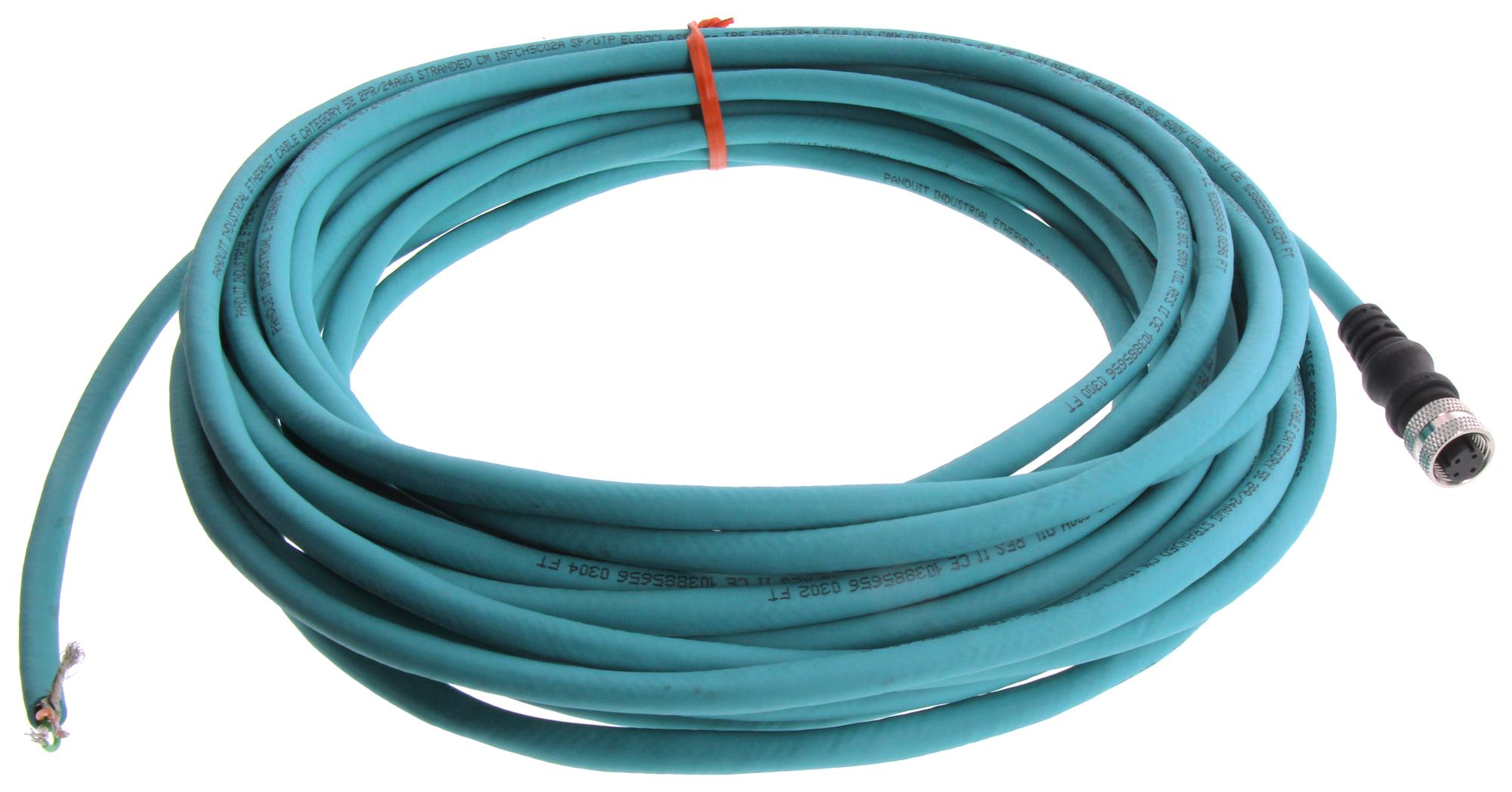

Panduit ICD35T1NTL10M IndustrialNet Cat 5e Ethernet Cordset
IndustrialNet M12 D-Code Category 5e Overmolded Cordsets are robust Ethernet cables suitable for industrial environments. Crafted with flame-retardant, industrial-grade TPU cable, these cords are rated for 600V, supporting reliable UTP and STP connections. Pre-terminated and overmolded with Nickel-plated zinc connectors, they meet IP67 standards for dust and temporary water immersion. Designed for high-flex applications, they withstand over 35 million flex cycles, resist chemicals, weld splatter, and light washdowns, ensuring dependable performance in harsh factory settings.
Panduit ICD35T1NTL10M IndustrialNet Cat 5e Ethernet Cordset Specifications:
- Cable Type: 24 AWG stranded, industrial-grade TPU, UTP or STP
- Rated Voltage: 600V, UL listed for control cabinets and on-machine use
- Connector: Pre-terminated M12 D-Code male or female with nickel plating
- Standards Compliance: T568B wiring, IEC 60603-7-41, ANSI/TIA-568.2-D, ISO 11801 Class D
- Frequency Range: Up to 100 MHz
- IP Rating: IP67 for dust protection and temporary immersion
- Flex Life: Rated for over 35 million flex cycles
- Temperature Range: -40°C to +75°C
- Construction: Overmolded with flame-retardant, chemical-resistant TPU jacket
- Certifications: NEMA, UL Type 12, RoHS compliant
- Applications: Industrial Ethernet, PROFINET, EtherCAT, Modbus, automation device connections
- Additional Features: Robust construction, high vibration tolerance, factory terminated for ease of installation
Buy the Buy Panduit M12 D-Code Category 5e Part Number ICD35T1NTL10M Online
Purchase the Panduit IndustrialNet Cat 5e Ethernet Cordset ICD35T1NTL10M online to ensure high-quality, reliable connections for industrial automation. These overmolded, IP67-rated cables provide durability, flexibility, and resistance to chemicals and environmental stressors. Factory-terminated for quick installation, they support high-vibration environments and withstand over 35 million flex cycles. Ideal for long-term industrial automation projects, these cordsets boost system reliability and simplify deployment across factory floors, transportation, and other harsh settings, ensuring seamless connectivity in demanding conditions.
Get Panduit ICD35T1NTL10M today—built for industrial Ethernet reliability and long-lasting durability in harsh environments.
Frequently Asked Questions
Where can I buy Panduit ICD35T1NTL10M?
You can click on the BUY or RFQ button to purchase ICD35T1NTL10M from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part ICD35T1NTL10M?
You can download the ICD35T1NTL10M datasheet or visit the Panduit website for support.
Who is the manufacturer of ICD35T1NTL10M?
Panduit
