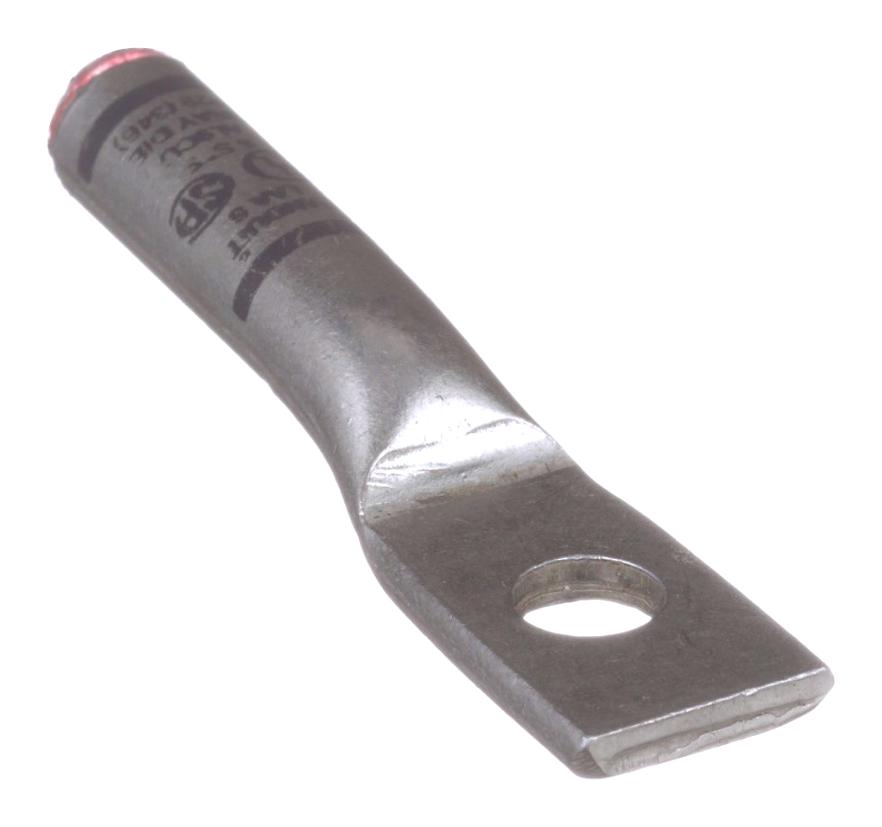

Panduit LAA614X Aluminum Lug Connector
PANDUIT LAA series aluminum lug connectors are manufactured from high-conductivity, thick-wall wrought aluminum, ensuring excellent electrical performance. These connectors are factory pre-filled with joint compound and sealed with an easy-pull-out end plug to inhibit corrosion, making them suitable for harsh environments. The color-coded end plug and die index markings simplify installation and ensure correct crimping. They are ideal for connecting electrical conductors in various industrial applications, offering a secure and long-lasting connection. Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V.
Panduit LAA614X Aluminum Lug Connector Specifications:
- Material: High conductivity thick wall wrought aluminum
- Joint Compound: Factory pre-filled and sealed
- Corrosion Protection: Color-coded end plug, tin-plated
- Voltage Rating: 35 KV
- Temperature Rating: 90°C
- Conductor Size: #6 AWG
- Stud Hole Size: 1/4 In.
- Figure Dimensions: 0.55 x 0.86 In.
- Panduit Die Index: P29
- Burndy Die Index: 346
- Wire Strip Length: 1 In.
- Std Package Quantity: 10
