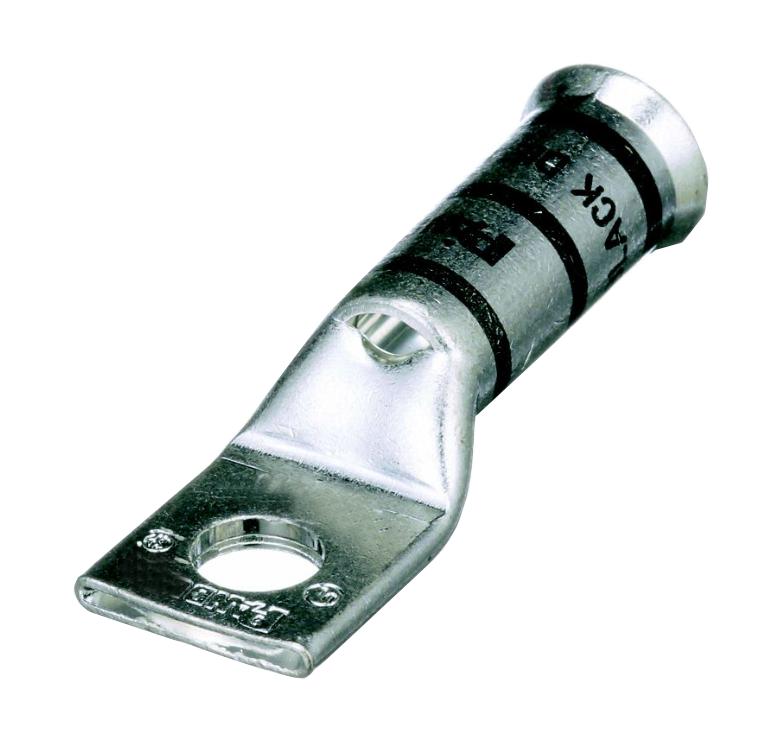

Panduit LCAF1038X Flexible Conductor Lug
This is a one-hole, flexible conductor lug with a standard barrel, featuring an inspection window to verify full conductor insertion and a flared entry to prevent strand bending. It has color-coded barrels marked with Panduit die index numbers for correct crimp die selection. Tin-plated to inhibit corrosion, it is suitable for flexible copper conductors in class K, M, and diesel locomotive applications. Tested by Telcordia, meets NEBS Level 3 standards, and rated for use up to 35 KV and 90°C, ensuring reliable electrical connections in demanding environments.
Panduit LCAF1038X Flexible Conductor Lug Specifications:
- Type: One-hole, standard barrel with window, flared entry
- Material: Tin-plated copper
- Suitable for: Flexible and extra-flexible copper conductors, class K and M, diesel locomotive applications
- Voltage rating: Up to 35 KV
- Temperature rating: 90°C
- Standards: Tested by Telcordia, NEBS Level 3 compliant
- Color code: Red (size #10), Blue (size 6-14), Gray (size 4), Brown (size 2-12), Pink (size 1X), Black (size 4/0-58 X), Orange (size 3/8-1/2)
- Dimensions: Length varies with size, typically around 13/16 in to 2 3/16 in; hole sizes range from 0.41 in to 0.85 in
- Crimping: Marked with Panduit die index for proper crimp die selection
- Additional features: Inspection window, corrosion resistant, UL Listed and CSA Certified
Buy the Panduit LCAF1038X – Reliable Flexible Conductor Lug for Industrial Applications
Secure your electrical connections today with the Panduit LCAF1038X flexible conductor lug, engineered for reliable performance. Featuring an inspection window and corrosion-resistant tin plating, this lug supports flexible copper conductors for industrial and locomotive use. Rated for up to 35 KV and 90°C, it ensures safe, compliant connections in demanding environments. With clear color coding and proper crimping marks, ordering online guarantees swift delivery and dependable quality. Optimize your electrical setup now with this essential connector designed for durability and safety in high-stress applications.
Order your Panduit Series LCAF1038X flexible conductor lug today and ensure secure, corrosion-resistant electrical connections in your critical projects.
Frequently Asked Questions
Where can I buy Panduit LCAF1038X?
You can click on the BUY or RFQ button to purchase LCAF1038X from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part LCAF1038X?
You can download the LCAF1038X datasheet or visit the Panduit website for support.
Who is the manufacturer of LCAF1038X?
Panduit
