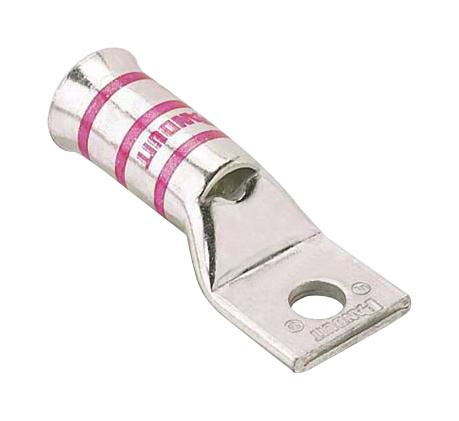

Panduit LCAF112X Flexible Conductor Lug
This is a one-hole, flexible conductor lug with a standard barrel featuring a window and a flared NEBS lug design. It is compatible with flexible conductors of classes K, M, and diesel locomotives. The flared entry prevents bending back strands during insertion of fine-strand conductors. Color-coded barrels, marked with Panduit die index numbers, facilitate proper crimp die selection. An inspection window allows visual verification of full conductor insertion. The lug is tin-plated to inhibit corrosion and has been tested by Telcordia, meeting NEBS Level 3 standards. Suitable for use with flexible and extra-flexible copper conductors.
Panduit LCAF112X Flexible Conductor Lug Specifications:
- Material: Tin-plated copper
- Design: One-hole, standard barrel with window, flared NEBS lug
- Compatible with: Class K, M, and diesel locomotive conductors
- Crimping: Proper die selection marked with Panduit die index numbers
- Features: Inspection window, color-coded barrels, corrosion-resistant plating
- Test standards: Telcordia NEBS Level 3
- Application: Flexible and extra-flexible copper conductors, suitable for rugged environments
- Color coding: Red, Blue, Gray, Pink, Black, Orange, Yellow based on size and class
- Dimensions: Vary by part number, detailed in product catalog
- Temperature rating: Rated for use in environments up to 90°C
- UL listed, CSA certified for safety and compliance
Buy the Buy Panduit Flexible Conductor Lug Part Number LCAF112X Online
Purchase the Panduit Flexible Conductor Lug online today—engineered for secure electrical connections, corrosion resistance, and easy installation with visual inspection. Its corrosion-resistant tin plating ensures durability, while the flared NEBS design prevents strand bending during wire insertion, making it ideal for demanding environments like locomotives and industrial settings. Proper crimping is facilitated through color-coded barrels and marked die index numbers, ensuring quick, accurate installation. Trust Panduit for quality and performance in your electrical assembly needs.
Get Panduit LCAF112X today—built for reliable electrical connections and corrosion resistance in demanding environments.
Frequently Asked Questions
Where can I buy Panduit LCAF112X?
You can click on the BUY or RFQ button to purchase LCAF112X from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part LCAF112X?
You can download the LCAF112X datasheet or visit the Panduit website for support.
Who is the manufacturer of LCAF112X?
Panduit
