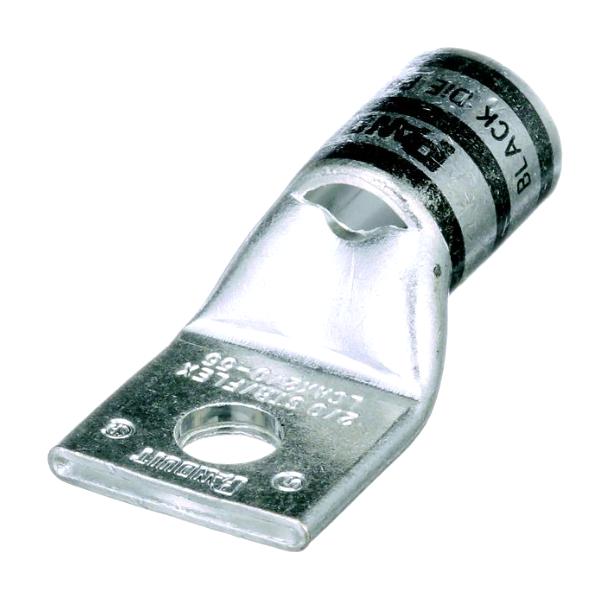

Panduit LCAX2056X Flex Conductor Lug
The Panduit LCAX2/0-56-X flex conductor lug is a robust solution for terminating flexible, extra-flexible, and code stranded copper conductors. Its design incorporates a generously beveled wire entry to prevent bent back strands, ensuring a secure and reliable connection. The inspection window allows for visual confirmation of full conductor insertion, while tin plating inhibits corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C when used with Panduit’s recommended crimping tools and dies, this lug is suitable for a wide range of industrial applications including power distribution, control panels, and machinery.
Panduit LCAX2056X Flex Conductor Lug Specifications:
- conductor_size: 2/0 AWG
- class: G, H, I, K, M, Diesel Locomotive
- stud_hole_size: 5/16 In.
- figure_dimensions_w: 0.56
- figure_dimensions_b: 0.42
- figure_dimensions_t: 0.05
- figure_dimensions_l: 1.32
- panduit_color_code: Red
- panduit_die_index_no: P21
- burndy_die_index_no: 49
- t_and_b_die_index_no: 21
- wire_strip_length: 1/2
- std_pkg_qty: 50
