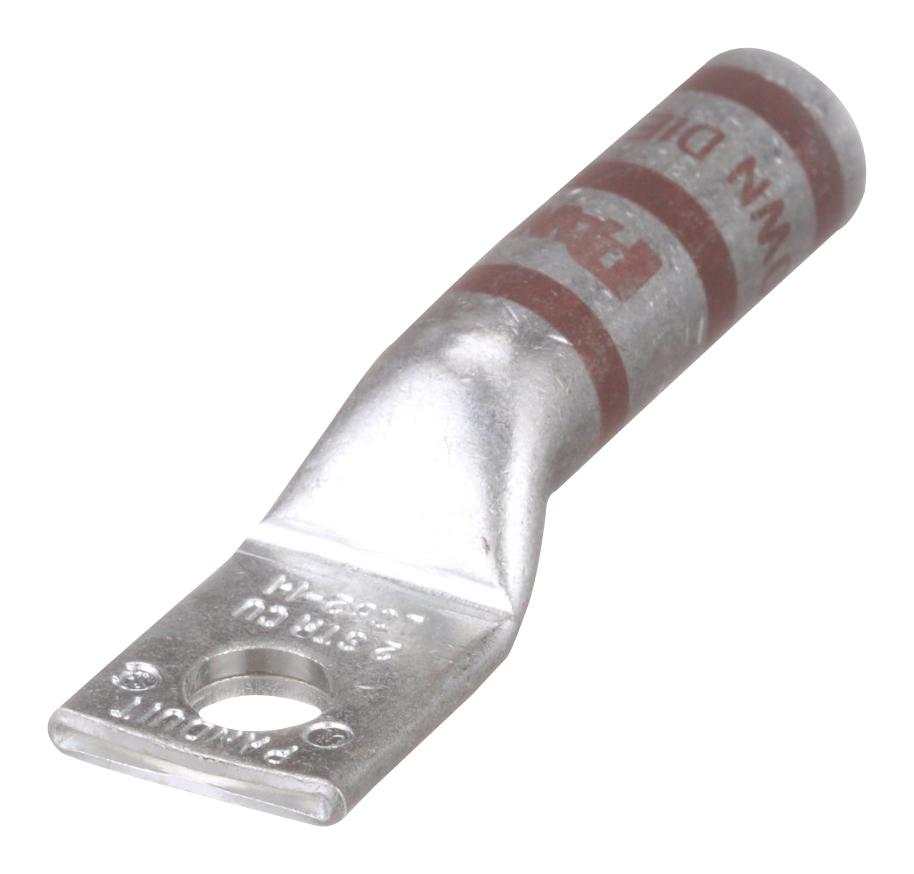

Panduit LCB214Q Long Barrel Lug Connector
The Panduit LCB2-14-Q is a long barrel compression lug connector specifically engineered for stranded copper conductors. Its extended barrel design maximizes the number of crimps, resulting in superior wire pull-out strength and electrical performance. The connector is color-coded and marked with Panduit and competitor die index numbers to ensure correct crimp die selection. The enclosed barrel construction protects against corrosion in harsh environments, and the tin-plated finish further inhibits corrosion. It is UL Listed and CSA Certified for a wide wire range when used with Panduit Uni-Die tools, and has been tested by Telcordia to meet NEBS Level 3 requirements. This connector is ideal for applications requiring robust and reliable electrical connections.
Panduit LCB214Q Long Barrel Lug Connector Specifications:
- Material: Tin-Plated Copper
- UL Listed: Yes
- CSA Certified: Yes
- Length (In.): 2.14
- Length (mm): 54.4
- Copper Conductor Size: #2 AWG
- Stud Hole Size (In.): 1/4
- Tongue Width (In.): 0.60
- Barrel Length (In.): 1.16
- Angle: Straight
- Barrel Length (mm): 29.5
- CE Compliant: No
- Clearance: 0.38
- Panduit Color Code: Brown
- Panduit Die Index No: P33
- Stud Hole Size (mm): 6.4
- Tongue Thickness: 0.10
- Tongue Type: Standard
- Tongue Width (mm): 15.2
- Wire Strip Length (In.): 1 1/4
- Wire Strip Length (mm): 31.8
- Min. Order UOM: PC
- Min. Order Qty.: 1
- Burndy Die Index No.: 10
- T&B Die Index No.: 33
