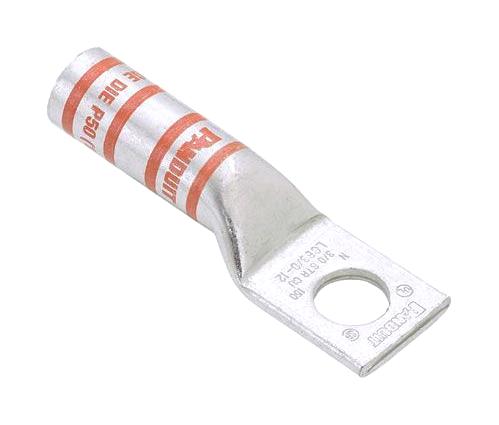

Panduit LCB414L One-Hole Long Barrel Lug
The Panduit LCB4-14-L copper lug provides a secure and reliable termination point for stranded copper wires. Its long barrel design ensures a strong connection, while the electro-tin plating offers excellent corrosion resistance. Suitable for a wide range of industrial applications requiring robust wire termination, this lug is UL listed for voltages up to 35kv. Refer to cable manufacturer instructions for voltage stress relief when using with higher voltage applications.
Panduit LCB414L One-Hole Long Barrel Lug Specifications:
- Material: High Conductivity Copper Tube
- Plating: Electro-Tin
- Wire Type: Stranded Copper, Class B
- Wire Strip Length: 1-1/8 in
- UL Listed Voltage: Up to 35kv
- UL Temperature Rating: 90°C
- C.S.A Certified: Yes
- Panduit Color Code: GRAY
- Panduit Die Index No: P29
- Alternate Industry Die Index No: 284.01
- Wire Connector: Yes
Buy the LCB4-14-L PANDUIT One-Hole Long Barrel Lug | myMectronic
Purchase the Panduit LCB4-14-L copper lug online for a secure and reliable connection.
Buy Now
Frequently Asked Questions
Where can I buy Panduit LCB414L?
You can click on the BUY or RFQ button to purchase LCB414L from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part LCB414L?
You can download the LCB414L datasheet or visit the Panduit website for support.
Who is the manufacturer of LCB414L?
Panduit
