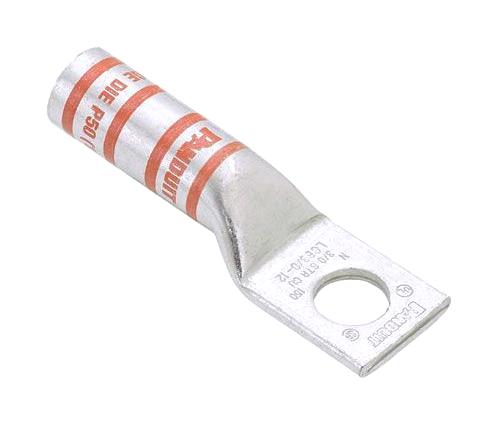

Panduit LCB438L One-Hole Long Barrel Lug
The Panduit LCB4-38-L copper lug connector is engineered for robust wire terminations in industrial settings. Constructed from high-conductivity copper and electro-tin plated, this connector ensures excellent electrical performance and corrosion resistance. Its long barrel design accommodates a range of stranded copper wire sizes, and the concentric barrel provides a secure, compressed connection. UL Listed for applications up to 35kV and rated for a 90°C temperature, the LCB4-38-L is suitable for demanding environments. Panduit’s color-coded barrel markings and die index provide easy identification and proper crimping.
Panduit LCB438L One-Hole Long Barrel Lug Specifications:
- Material: High Conductivity Seamless Copper Tube
- Plating: Electro-Tin
- Wire Type: Stranded Copper; Class B: Color coded, Concentric, Class C: Concentric
- Wire Strip Length: 1-1/8 in.
- UL Listed Wire: Yes, for applications up to 35kv
- Connector Voltage: Consult manufacturer instructions for applications greater than 364.04 414.02 DIA 2000 volts
- UL Temperature Rating: 90°C
- C.S.A Certified: Yes
- Panduit Color Code: GRAY on Barrel
- Beveled Wire Entry: 1.05+.04
- Panduit Die Index: P29 on Barrel
- Alternate Industry Die Index: 28.01 .38+.01 on Barrel
- Wire Size: .07+.01 mn
