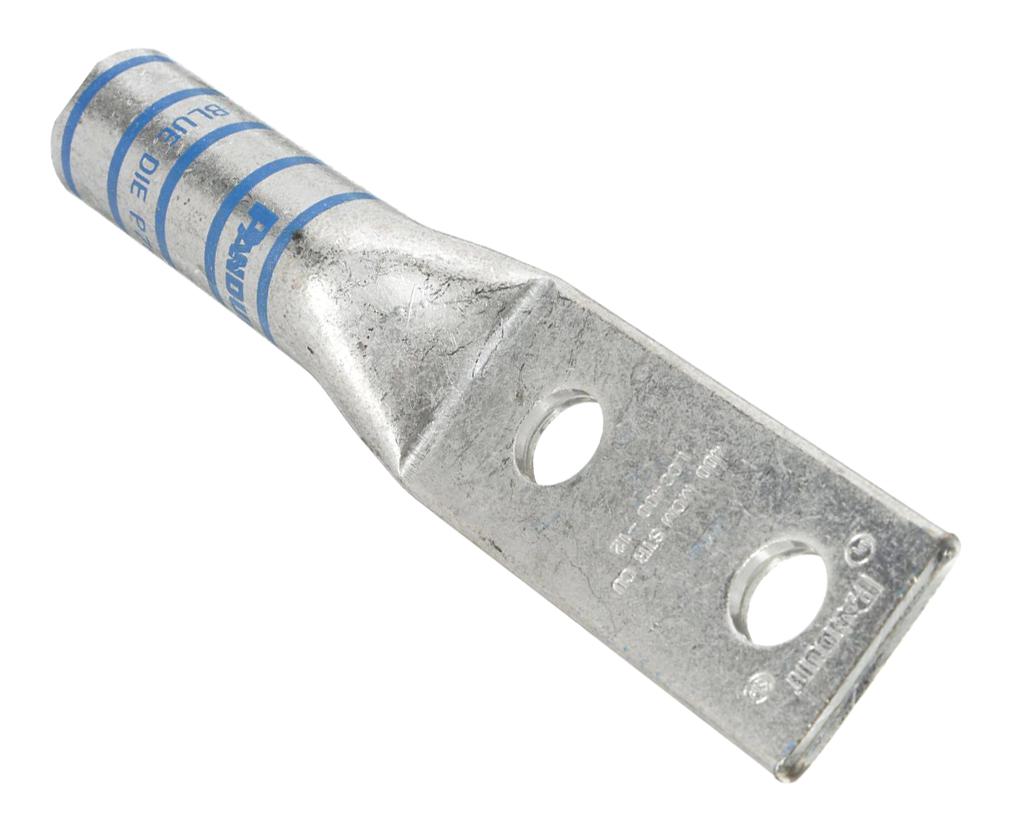

Panduit LCC400126 Two-Hole Long Barrel Lug
The Panduit LCC400-12-6 is a high-quality copper lug designed for reliable electrical connections. Constructed from seamless copper tubing and finished with electro-tin plating, this lug provides excellent conductivity and resistance to corrosion. It is suitable for a wide range of industrial applications, including power distribution, motor control, and lighting systems. The long barrel design ensures a secure and durable connection, while the color-coded barrel markings and Panduit die index facilitate easy and accurate installation. For applications exceeding 2000 volts, consult the cable manufacturer for voltage stress relief instructions.
Panduit LCC400126 Two-Hole Long Barrel Lug Specifications:
- Material: High Conductivity Seamless Copper Tube
- Plating: Electro-Tin
- Color Code: BLUE
- Wire Type: Stranded Copper; Class B (Compact, Compressed or E (2) 5); Concentric, Class C
- Wire Strip Length: 2-3/8 in.
- UL Listed Voltage: Up to 35kv
- UL Temperature Rating: 90°C
- C.S.A Certified: Yes
- Panduit Die Index No: P76
- Alternate Industry: 19
- Drawing No: LCC400-12-CUST
- Revision Date: 12/02
Buy the LCC400-12-6 PANDUIT Two-Hole Long Barrel Lug | myMectronic
Purchase the Panduit LCC400-12-6 copper lug online for a secure and reliable connection.
Buy Now
Frequently Asked Questions
Where can I buy Panduit LCC400126?
You can click on the BUY or RFQ button to purchase LCC400126 from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part LCC400126?
You can download the LCC400126 datasheet or visit the Panduit website for support.
Who is the manufacturer of LCC400126?
Panduit
