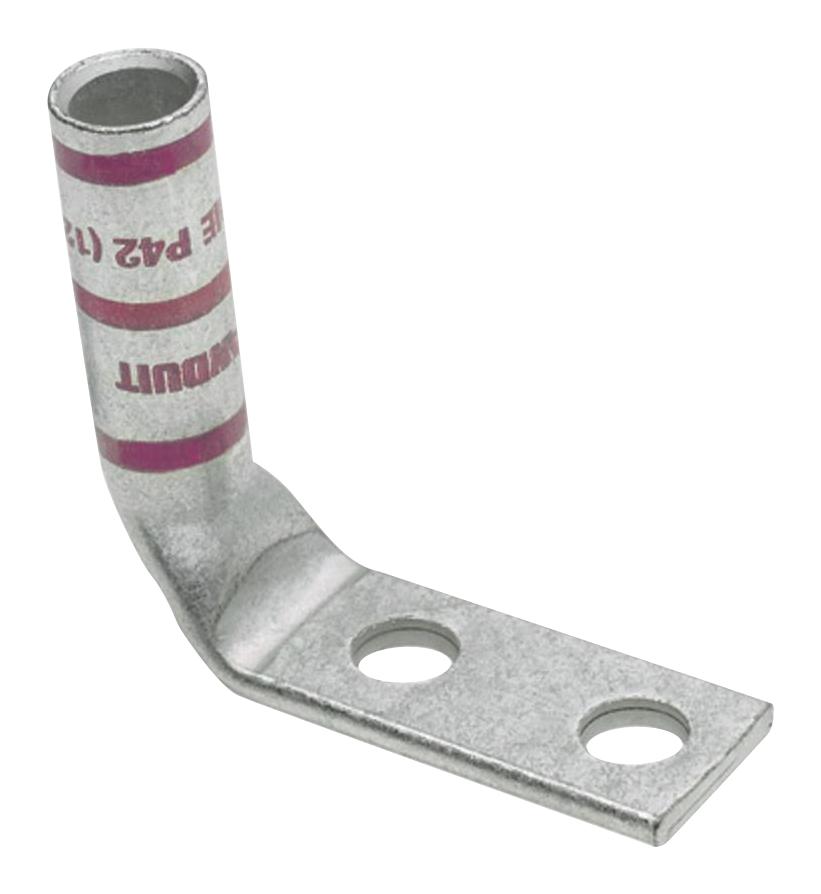

Panduit LCC414AWFL Long Barrel Window Lug
The Panduit LCC4-14AWF-L is a long barrel window lug connector designed for use with stranded copper conductors. Its long barrel maximizes the number of crimps, providing premium wire pull-out strength and electrical performance when used with Panduit Uni-Die Dieless Crimping Tools. The inspection window allows for visual assurance of full conductor insertion. This connector meets NEBS Level 3 Cable requirements and is suitable for network grounding applications. It is tin-plated to inhibit corrosion and available with NEMA hole sizes and spacing.
Panduit LCC414AWFL Long Barrel Window Lug Specifications:
- System Code Conductor: Two-Hole, Long Barrel with Window Lug, 90° Angle
- For Use with: Stranded Copper Conductors
- Long barrel: Maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Inspection window: Visually assures full conductor insertion
- Meets J-STD-607-A and TIA-942: Requirements for network systems grounding applications
- Tin-plated: To inhibit corrosion
- UL Listed and CSA Certified: To 35 KV and temperature rated to 90°C
- Color-coded barrels: Marked with Panduit and specified competitor die index numbers
Buy the LCC4-14AWF-L PANDUIT Long Barrel Window Lug | myMectronic
Purchase the Panduit LCC4-14AWF-L connector securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Panduit LCC414AWFL?
You can click on the BUY or RFQ button to purchase LCC414AWFL from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part LCC414AWFL?
You can download the LCC414AWFL datasheet or visit the Panduit website for support.
Who is the manufacturer of LCC414AWFL?
Panduit
