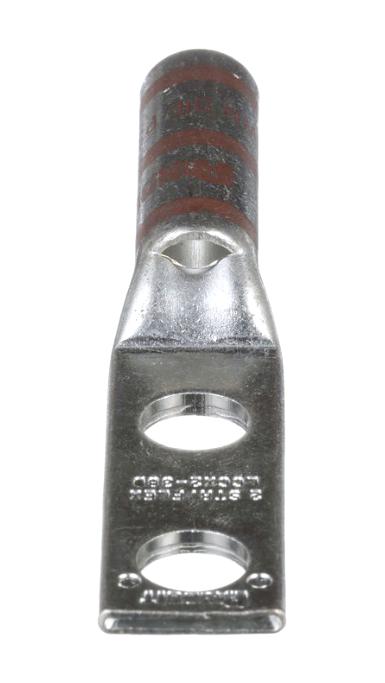

Panduit LCCX238DE Long Barrel Lug Connector
The Panduit LCCX2-38D-E is a long barrel lug connector specifically engineered for use with flexible, extra-flexible, and code stranded copper conductors. Its long barrel design maximizes the number of crimps, resulting in superior wire pull-out strength and electrical performance. The generously beveled wire entry prevents bent back strands during insertion, ensuring a secure and reliable connection. This connector is color-coded and marked with Panduit and competitor die index numbers for proper crimp die selection. It is tin-plated to inhibit corrosion, UL Listed, and CSA Certified, meeting J-STD-607-A and TIA-942 requirements for network grounding applications. The inspection window allows for visual confirmation of full conductor insertion, contributing to the overall quality and reliability of the connection.
Panduit LCCX238DE Long Barrel Lug Connector Specifications:
- For Use With: Flexible, Extra-Flexible, and Code Stranded Copper Conductors
- Can Be Used With: Class G, H, I, K, M and Diesel Locomotive conductors
- Barrel Design: Long barrel maximizes crimps and provides wire pull-out strength
- Wire Entry: Beveled wire entry prevents bent back strands
- Color Coding: Color-coded barrels with Panduit and competitor die index numbers
- Corrosion Resistance: Tin-plated to inhibit corrosion
- Certifications: UL Listed and CSA Certified to 35 KV
- Temperature Rating: Rated to 90°C when crimped with Panduit and specified competitor tools
- Standards Compliance: Meets J-STD-607-A and TIA-942 requirements
- Hole Size: NEMA hole sizes and spacing
- Inspection Window: Visually assures full conductor insertion
Buy the LCCX2-38D-E PANDUIT Long Barrel Lug Connector | myMectronic
Purchase the Panduit LCCX2-38D-E connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Panduit LCCX238DE?
You can click on the BUY or RFQ button to purchase LCCX238DE from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part LCCX238DE?
You can download the LCCX238DE datasheet or visit the Panduit website for support.
Who is the manufacturer of LCCX238DE?
Panduit
