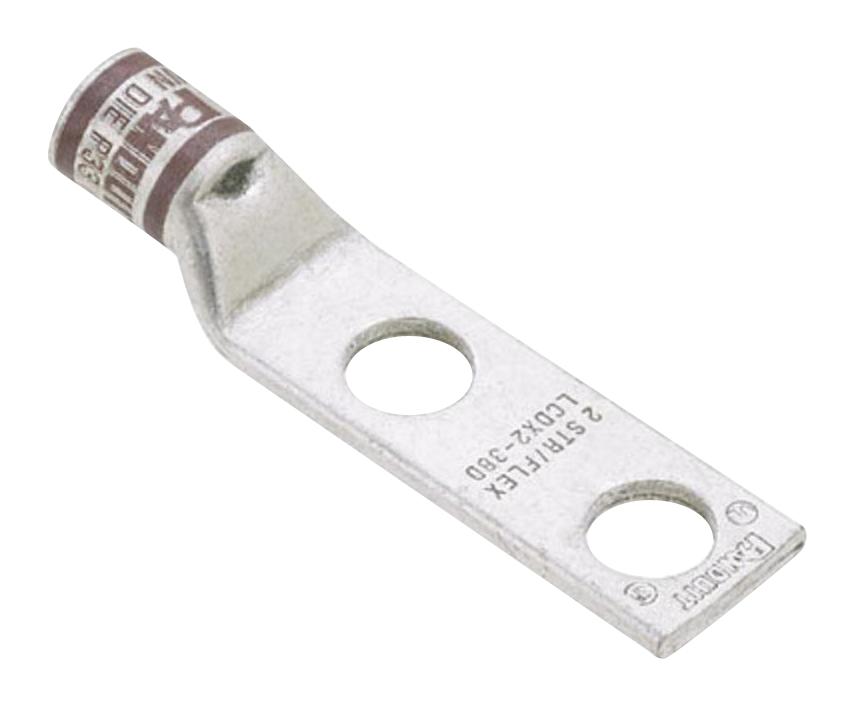

Panduit LCDX1038DX Ring Terminal Connector
PANDUIT LCDX ring terminal connectors provide a secure and reliable termination solution for a variety of applications. Designed for use with flexible, extra-flexible, and code stranded copper conductors, these connectors feature a generously beveled wire entry to prevent bent back strands during insertion. Color-coded barrels, marked with Panduit and competitor die index numbers, ensure proper crimp die selection. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C when crimped with Panduit and specified competitor crimping tools and dies, these connectors offer exceptional performance and durability. They are ideal for use in electrical systems, power distribution, and industrial equipment.
Panduit LCDX1038DX Ring Terminal Connector Specifications:
- conductor_size: #1 AWG
- code_conductor_size: #1 AWG
- stud_hole_size_in: 3/8
- stud_hole_spacing_in: 1.00
- figure_dimensions_in: 0.72
- panduit_color_code: Green
- panduit_die_index_no: P37
- burndy_die_index_no: 11
- t_and_b_die_index_no: 37
- wire_strip_length_in: 3/4
- std_pkg_qty: 10
- ul_listed: Yes
- csa_certified: Yes
- voltage_rating_kv: 35
- temperature_rating_c: 90
- abs_approved: Yes
- nema_hole_sizes: Yes
Buy the LCDX1/0-38D-X PANDUIT Ring Terminal Connector | myMectronic
Purchase the PANDUIT LCDX1/0-38D-X Ring Terminal Connector securely and efficiently online.
Buy Now
