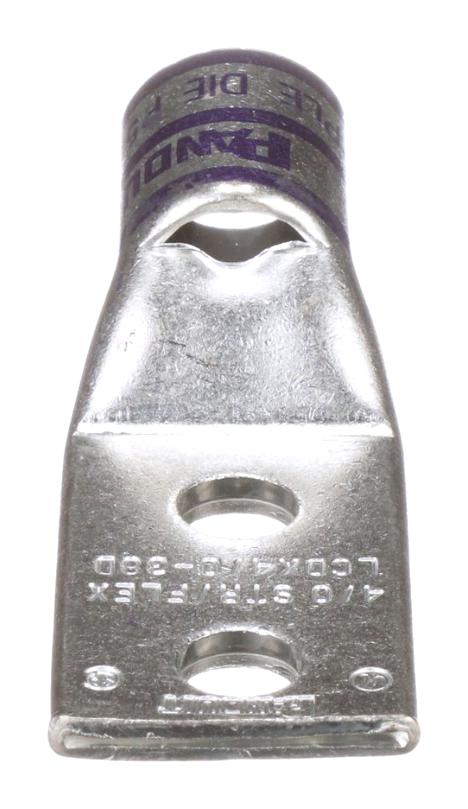

Panduit LCDX4038DX Ring Terminal Connector
PANDUIT LCDX ring terminal connectors provide a secure and reliable connection for various wire types. These connectors are designed for use with flexible, extra-flexible, and code stranded copper conductors, ensuring compatibility across a range of applications. The generously beveled wire entry prevents bent back strands during insertion, simplifying the termination process. Color-coded barrels, marked with Panduit and competitor die index numbers, facilitate proper crimp die selection, enhancing efficiency and accuracy. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C when crimped with Panduit and specified competitor crimping tools and dies, these connectors offer exceptional performance and safety. American Bureau of Shipping approved, they are available with NEMA hole sizes and spacing to meet diverse installation requirements. The inspection window allows for visual confirmation of full conductor insertion, ensuring a secure and reliable connection.
Panduit LCDX4038DX Ring Terminal Connector Specifications:
- conductor_size: #4 AWG
- code_conductor_size: #4 AWG
- stud_hole_size_in: 3/8
- stud_hole_spacing_in: 1.00
- figure_dimensions_in: 0.62
- panduit_color_code: Gray
- panduit_die_index_no: P29
- burndy_die_index_no: 8
- wire_strip_length_in: 5/8
- std_pkg_qty: 50
- ul_listed: Yes
- csa_certified: Yes
- voltage_rating_kv: 35
- temperature_rating_c: 90
- abs_approved: Yes
- nema_hole_sizes: Yes
