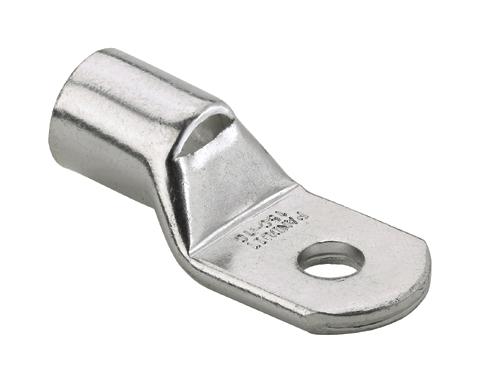

Panduit LCMA108C Metric Lug Connector
Panduit LCMA series metric lug connectors are designed for terminating stranded copper wire. These connectors feature a high conductivity seamless copper tube construction with a tin plating for corrosion resistance. They are suitable for a variety of industrial applications requiring secure and reliable wire terminations. Consult the datasheet for specific wire size and current rating information, as well as UL and CSA certifications. Proper installation and voltage stress relief are crucial for applications exceeding 2000 volts.
Panduit LCMA108C Metric Lug Connector Specifications:
- Material: High conductivity seamless copper tube
- Plating: Tin plated
- Wire Type: Class 2R Stranded Copper
- UL Listed or Recognized: Yes, for applications up to 35kv
- UL Temperature Rating: 90 C
- Stud Size: M8
- Wire Strip Length: 13.00
- Current Rating: 30A
- Panduit Die Index No: P21
- Wire Size: 10 mm²
- Beveled Wire Entry: Yes
- Wire Inspection Window: Yes
- Dimensional Tolerance (X): +/- 1.25
- Dimensional Tolerance (d): +/- 0.50
- Dimensional Tolerance (b): +/- 1.25
- Overall Length Tolerance: +/- 2.25
