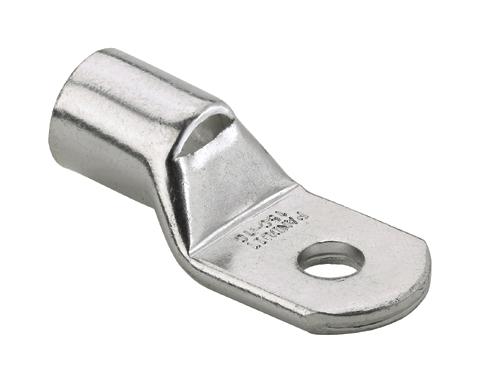

Panduit LCMA708L Copper Tube Wire Connector
The PANDUIT LCMA70-8-L is a robust wire connector designed for secure and reliable connections in various industrial applications. Constructed with a high conductivity seamless copper tube and tin plating, this connector ensures excellent electrical performance and corrosion resistance. It is specifically designed for use with Class 2R stranded copper wire and is UL listed for applications up to 35kv, making it suitable for demanding environments. Proper voltage stress relief is recommended for applications exceeding 2000 volts. Refer to the Panduit die index chart for correct crimping.
Panduit LCMA708L Copper Tube Wire Connector Specifications:
- Material: High conductivity seamless copper tube
- Plating: Tin plated
- Wire Type: Class 2R Stranded Copper
- UL Listing: Yes, up to 35kv
- UL Temperature Rating: 90 C
- CSA Certification: Yes
- Stud Size: M8
- Wire Strip Length: 24.8 mm
- Panduit Die Index No: P45
- l tolerance: ±2.76
- o tolerance: ±.50
- i tolerance: ±.50
- a tolerance: ±2.25
- m (ref): N/A
- n tolerance: ±2.25
- d tolerance: ±.50
- b tolerance: ±2.25
- t tolerance: ±2.05
